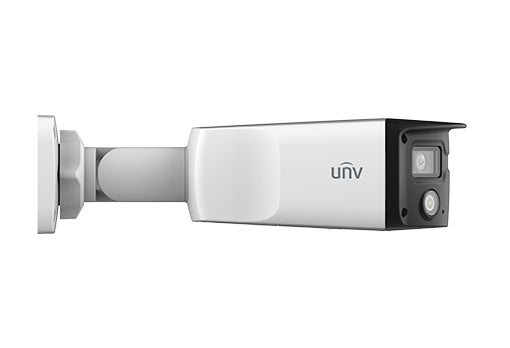

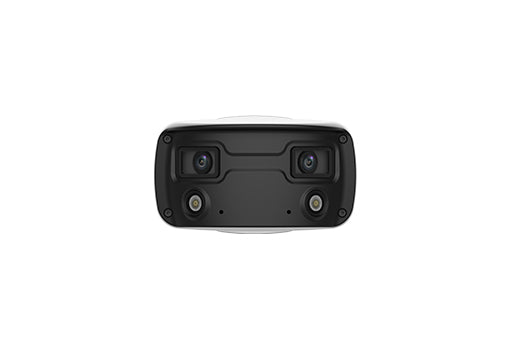

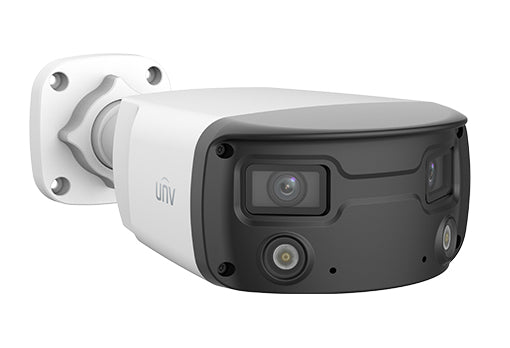

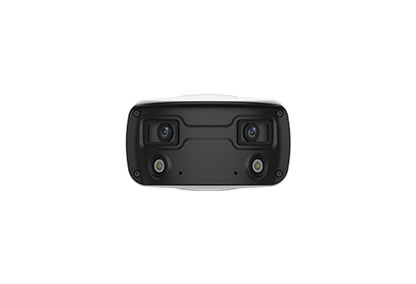

UNV 8MP HD NDAA 2-Way Audio IP Uniview Fixed Bullet IP Network Security Camera
UNV 8MP HD NDAA 2-Way Audio IP Uniview Fixed Bullet IP Network Security Camera
SKU:IPC2K28SE-ADF40KMC-WL-I0
Couldn't load pickup availability
UNV 8MP PoE Colorhunter NDAA Weatherproof 24/7 Bullet Uniview IP Network Security Camera with 2 x 4.0mm Fixed Lenses and 2-Way Audio
The Uniview 8MP PoE Bullet Camera offers advanced 24/7 full-color surveillance with ColorHunter technology for high-quality, clear images even in low-light conditions. This NDAA compliant camera ensures secure video monitoring, making it ideal for home or business security. Featuring PoE (Power over Ethernet) for easy installation, this Uniview IP camera supports smart intrusion prevention, reducing false alarms caused by environmental factors. The Uniview 8MP IP camera provides a wide horizontal viewing angle with dual fixed lenses and delivers high-definition 8MP resolution for crisp image clarity. With built-in two-way audio and support for up to 256GB micro SD cards, this Uniview surveillance camera is designed for round-the-clock, reliable monitoring. Shop the Uniview bullet camera and enhance your security setup with top-tier uniview security cameras at Secure IT Global.
Uniview 8MP PoE NDAA Compliant Bullet Camera - ColorHunter 24/7 Surveillance
Features:
- High quality image with 8MP, 1/2.7"CMOS sensor
- 8MP (5120*1440)@20fps
- The double lens splicing technology is adopted to realize the horizontal viewing angle of 180°±10°
- Colorhunter technology ensures 24-hour full-color images
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc.
- Intelligent People Flow Counting and Crowd Density Monitoring
- Alarm:1 in/1 out
- Audio: 1 in/1 out
- Built-in speaker and dual mics
- Support 256 GB micro SD card
- 12V DC/PoE power supply
Specification:
Camera | |||||||
Sensor | 1/2.7″, 8.0 megapixel, progressive scan, CMOS | ||||||
Minimum Illumination | Colour: 0.0005 lux (F1.0, AGC ON) | ||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
WDR | 130dB | ||||||
S/N | >52dB | ||||||
Lens | |||||||
Lens | 2 * 4.0mm@F1.0 | ||||||
Iris | Fixed | ||||||
Field of View (H) | 180°±10° | ||||||
Field of View (V) | 47.41° | ||||||
Field of View (D) | 180.13°±10° | ||||||
DORI | |||||||
DORI Distance | Lens (mm) | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||
4.0 | 90m(259.3ft) | 36m(118.1ft) | 18m(59.1ft) | 9m(29.5fft) | |||
Illuminator | |||||||
LED Distance | Up to 30m (98ft) | ||||||
LED On/Off Control | Auto/Manual | ||||||
Video | |||||||
Video Compression | Ultra265, H.265, H.264, MJPEG | ||||||
H.264 code profile | Baseline profile, Main profile, High profile | ||||||
Frame Rate | Main Stream: 8MP (5120*1440), Max 20fps Sub Stream: 2560*720, Max 20fps |
||||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||||
U-code | Support | ||||||
OSD | Up to 8 OSDs | ||||||
Privacy Mask | Up to 4 areas | ||||||
ROI | Up to 8 areas | ||||||
Video Stream | Double streams | ||||||
Image | |||||||
Auto Scene Match (ASM) | Support(Only WDR) | ||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
Digital noise reduction | 2D/3D DNR | ||||||
Smart Illumination | Support | ||||||
Flip | N/A | ||||||
Dewarping | N/A | ||||||
HLC | Support | ||||||
BLC | Support | ||||||
Defog | Digital Defog | ||||||
Intelligent | |||||||
Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||||
Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||||
Events | |||||||
Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection | ||||||
General Function | Watermark, IP address filtering, Alarm input, Alarm output, access policy, ARP protection, RTSP authentication, user authentication | ||||||
Audio | |||||||
Audio Compression | G.711 | ||||||
Audio Bitrate | 64 Kbps | ||||||
Two-way audio | Support | ||||||
Suppression | Support | ||||||
Sampling Rate | 8KHZ | ||||||
Storage | |||||||
Edge Storage | Micro SD, up to 256GB | ||||||
Network Storage | ANR, NAS(NFS) | ||||||
Network | |||||||
Protocols | IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH | ||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||||
User/Host | Up to 32 users. 3 user levels: administrator and common user and operator | ||||||
Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||
Client | EZStation EZView EZLive |
||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
Interface | |||||||
Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||
Output: impedance 600Ω; amplitude 2V [p-p] | |||||||
Alarm I/O | 1/1 | ||||||
RS485 | N/A | ||||||
Built-in Mic | Built-in two mics | ||||||
Built-in Speaker | Support | ||||||
WIFI | N/A | ||||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||
Video Output | N/A | ||||||
Certifications | |||||||
EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) |
||||||
Safety | CE-LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); | ||||||
Protection | IP67 (IEC 60529) | ||||||
General | |||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
Power consumption: Max 13w | |||||||
Power Interface | Ø 5.5mm coaxial power plug | ||||||
Dimensions (L × W × H) | 273 × 130 × 76mm (10.7” × 5.1” × 3.0”) | ||||||
Weight | 0.96kg (2.12lb) | ||||||
Material | Metal | ||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
surge protection | 4KV | ||||||
Reset Button | Support |
