UNV 4MP HD IP67 NDAA Audio IP Network Uniview Security Surveillance Dome Camera
UNV 4MP HD IP67 NDAA Audio IP Network Uniview Security Surveillance Dome Camera
SKU:IPC3234SB-ADZK-I0
Couldn't load pickup availability

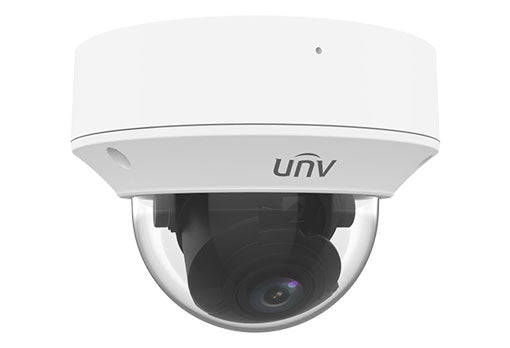

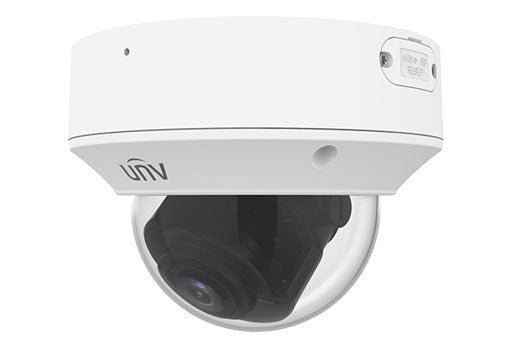

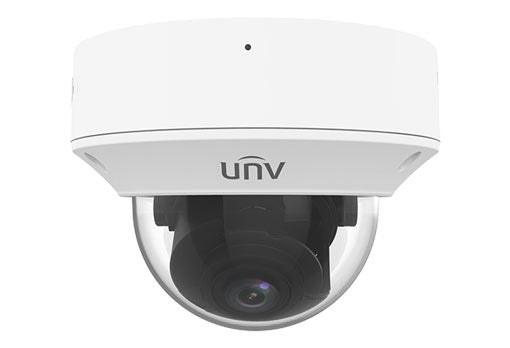

UNV 4MP IP67 IK10 IR LightHunter NDAA-Compliant Weatherproof Vandal Dome Uniview IP Security Camera with a 2.7 - 13.5mm Motorized Varifocal Lens
Key Features of the UNV 4MP Dome Camera :
- Camera Style: Dome
- Resolution: 4MP
- Compression: Ultra 265, H.265, H.264, MJPEG
- Lens Type : Motorized (Automatic Zoom) Lens
- Lens Size : 2.7 ~ 13.5mm Lens
- Protection Code : IP67,IK10
- Color : White
- Environmental : Outdoor
Uniview 4MP IP Dome Camera | NDAA-Compliant LightHunter Security Solution:
The UNV 4MP IP67 IK10 Dome Camera is a top-tier solution in the Uniview IP camera lineup, offering excellent performance, rugged design, and government-grade NDAA compliance. Equipped with advanced LightHunter technology, this Uniview surveillance camera delivers vivid, full-color images even in ultra-low light conditions — perfect for both day and night surveillance.
Featuring a 2.7~13.5mm motorized varifocal lens, this UNV security camera offers precise zoom control and wide-angle coverage. It supports multiple video compression standards including Ultra 265, H.265, and H.264 for efficient streaming and storage. Designed for extreme conditions, the Uniview dome camera comes with IP67 waterproof and IK10 vandal-resistant ratings, making it suitable for outdoor installations.
This UNV IP camera supports Power over Ethernet (PoE), enabling easy installation without additional power cables. It also meets Uniview NDAA compliance standards, making it a secure option for government and enterprise-level deployments.
Whether you're looking for a Uniview bullet camera, PTZ camera, or a reliable PoE dome camera, this model fits perfectly within any Uniview video surveillance system.
Specification of the UNV 4MP Dome Camera :
Camera |
|||||||
| Sensor | 1/3", 4.0megapixel, progressive scan, CMOS | ||||||
| Minimum Illumination | Colour: 0.002 lux (F1.2, AGC ON) 0 lux with IR on | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Adjustment angle | Pan: 0° ~ 355° | Tilt: 0° ~ 80° | Rotate:0° ~ 355° | ||||
| WDR | 120dB | ||||||
| S/N | >56dB | ||||||
Lens |
|||||||
| Lens | 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens | ||||||
| Iris | Fixed | ||||||
| Field of View (H) | 98.26°~ 31.35° | ||||||
| Field of View (V) | 54.76°~ 18.55° | ||||||
| Field of View (D) | 127.74°~36.99° | ||||||
DORI |
|||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.7 | 60.8 | 24.3 | 12.2 | 6.1 | |||
Illuminator |
|||||||
| IR Range | Up to 40m (131ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
Video |
|||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||
| Frame Rate | Main Stream: 4MP Sub Stream: 720P Third Stream: D1 | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| U-code | Support | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | 4 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Video Stream | Triple streams | ||||||
Image |
|||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
| Dewarping | N/A | ||||||
| HLC | Support | ||||||
| Defog | Digital Defog | ||||||
Intelligent |
|||||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||||
Events |
|||||||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection | ||||||
| General Function | Watermark, IP address filtering, alarm input, alarm output, access policy, ARP Protection, RTSP authentication, | ||||||
Audio |
|||||||
| Audio Compression | G.711 | ||||||
| Audio Bitrate | 64 Kbps | ||||||
| Two-way Audio | Support | ||||||
| Suppression | Support | ||||||
| Sampling Rate | 8KHZ | ||||||
Storage |
|||||||
| Edge Storage | Micro SD, up to 256GB | ||||||
| Network Storage | ANR, NAS(NFS) | ||||||
Network |
|||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, etc. | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, WSSE and digest authentication for ONVIF | ||||||
| Client | EZStation EZView | ||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
Interface |
|||||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||||
| Alarm I/O | 1/1 | ||||||
| RS485 | N/A | ||||||
| Built-in Mic | Support | ||||||
| Built-in Speaker | N/A | ||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||
| Video Output | N/A | ||||||
Certifications |
|||||||
| EMC | CE-EMC FCC | ||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL | ||||||
| Environment | CE-RoHS | ||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | ||||||
General |
|||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 7.0W | |||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||
| Dimensions (Ø x H) | Φ148 x 111.3mm (Ø5.8” x 4.4”) | ||||||
| Weight | 0.92kg (2.03lb) | ||||||
| Material | Metal | ||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F) | ||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F) | ||||||
| Surge Protection | 6KV | ||||||
| Reset Button | Support | ||||||
