UNV 5MP HD IP67 NDAA Audio IP Network Uniview Dome Security Surveillance Camera
UNV 5MP HD IP67 NDAA Audio IP Network Uniview Dome Security Surveillance Camera
SKU:IPC325SB-DF28K-I0
Couldn't load pickup availability
UNV 5MP HD LightHunter IP Uniview Security Dome Camera 2.8mm Fixed Lens

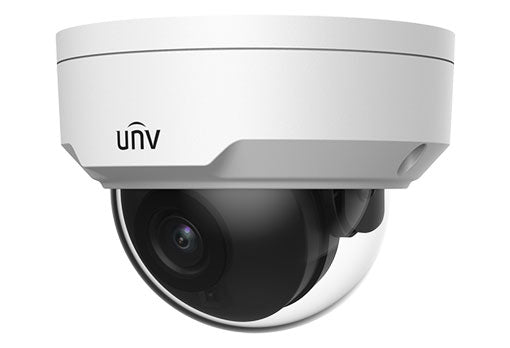

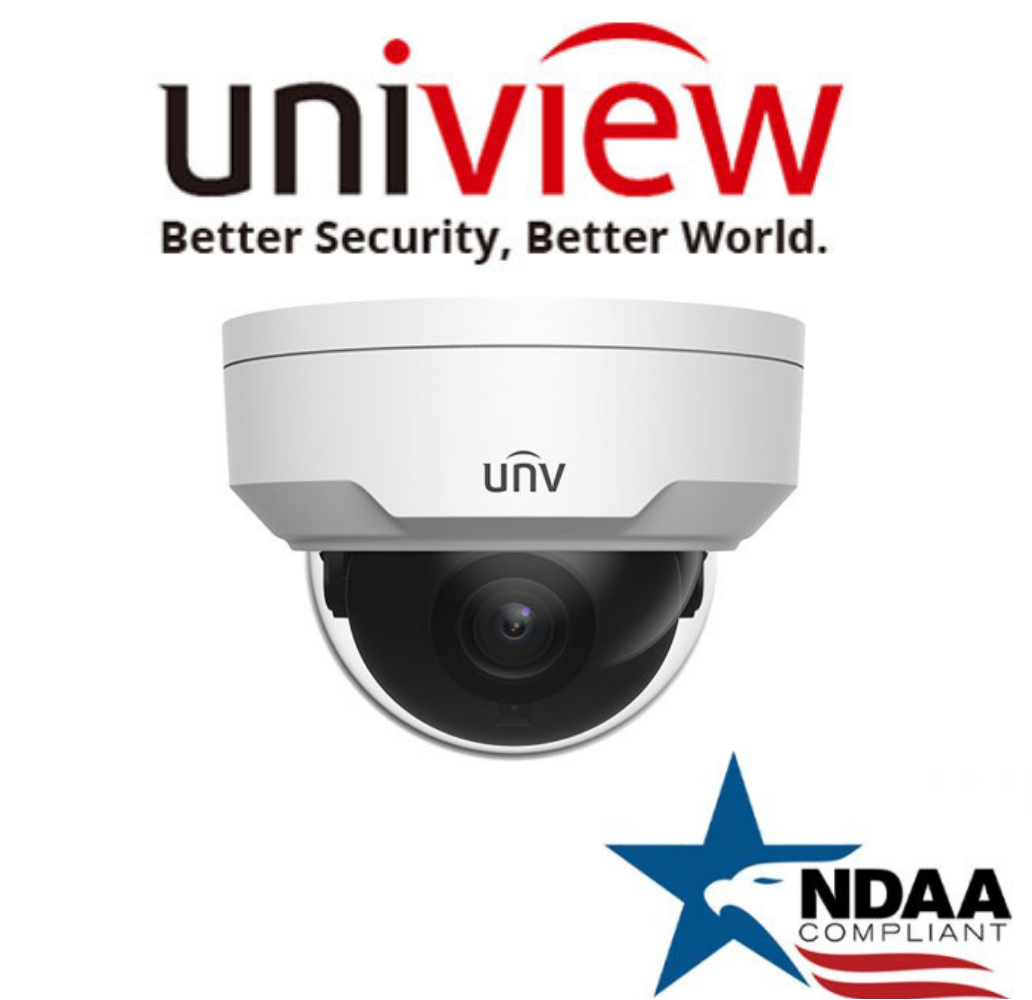

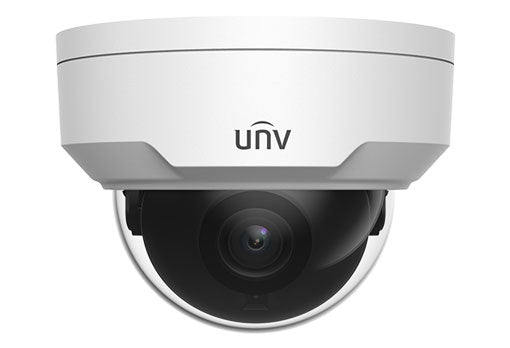

Uniview 5MP IP Dome Camera - High Definition Security for Outdoor Surveillance
The Uniview 5MP IP Dome Camera is an advanced outdoor security solution designed to provide clear, high-definition surveillance, even in low light conditions. Equipped with LightHunter technology, this camera ensures superior image quality during the night, offering enhanced visibility. As a NDAA compliant security camera, it meets strict government regulations, ensuring that your surveillance system is secure and reliable. With a POE camera design, the Uniview 5MP IP dome camera offers simplified installation and reduces cable clutter, making it an ideal choice for both residential and commercial applications.
Built with an IP67 rating, this camera is fully protected against dust and water, making it perfect for harsh outdoor environments. The Uniview IP camera series is trusted by professionals for its durability and performance, offering advanced video compression formats such as Ultra 265 and H.265. Whether you're looking for a dome camera, a poe camera uniview, or a surveillance solution, this camera meets all your security needs with top-tier performance and ease of use.
Key Features of the Uniview 5MP Dome Camera :
- Compression : Ultra 265, H.265, H.264, MJPEG
- Megapixel: 5MP
- Camera Style: Dome
- Lens Type :Fixed Lens
- Lens Size : 2.8mm
- Protection Code : IP67
- Dimensions (Ø x H): Φ108mm x 81.1mm (Ø4.3” x 3.2”)
- Weight: 0.425kg (0.93lb)
- Environmental : outdoor
Specification of the Uniview 5MP Dome Camera:
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||||||
| Minimum Illumination | Colour:0.002 lux (F1.6, AGC ON) 0 lux with IR | ||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 68° | Rotate: 3° ~ 360° | ||||||
| WDR | 120dB | ||||||||
| S/N | >56dB | ||||||||
Lens |
|||||||||
| Lens | 2.8mm@F1.6 | ||||||||
| Iris | Fixed | ||||||||
| Field of View (H) | 96.1° | ||||||||
| Field of View (V) | 55.3° | ||||||||
| Field of View (D) | 111.1° | ||||||||
DORI |
|||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |||||
Illuminator |
|||||||||
| IR Range | Up to 30m (98ft) IR range | ||||||||
| Wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
Video |
|||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||||
| Frame Rate | Main Stream:5MP Sub Stream: 720P Third Stream: D1 | ||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| U-code | Support | ||||||||
| OSD | Up to 8 OSDs | ||||||||
| Privacy Mask | Up to 4 areas | ||||||||
| ROI | Up to 8 areas | ||||||||
| Video Stream | Triple streams | ||||||||
Image |
|||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
| Dewarping | N/A | ||||||||
| HLC | Support | ||||||||
| BLC | Support | ||||||||
| Defog | Digital Defog | ||||||||
Intelligent |
|||||||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||||||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||||||
Events |
|||||||||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection | ||||||||
| General Function | Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access Policy, ARP protection, RTSP authentication, user authentication | ||||||||
Audio |
|||||||||
| Audio Compression | G.711 | ||||||||
| Audio Bitrate | 64 Kbps | ||||||||
| Two-way audio | Support | ||||||||
| Suppression | Support | ||||||||
| Sampling Rate | 8KHZ | ||||||||
Storage |
|||||||||
| Edge Storage | Micro SD, up to 256GB | ||||||||
| Network Storage | ANR, NAS(NFS) | ||||||||
Network |
|||||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, etc. | ||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||||
| Client | EZStation EZView EZLive | ||||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||||
Interface |
|||||||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||||||
| Alarm I/O | 1/1 | ||||||||
| RS485 | N/A | ||||||||
| Built-in Mic | N/A | ||||||||
| Built-in Speaker | N/A | ||||||||
| WIFI | N/A | ||||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||||
| Video Output | N/A | ||||||||
Certifications |
|||||||||
| EMC | CE-EMC FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL | ||||||||
| Environment | CE-RoHS | ||||||||
| Protection | IP67 IK10 | ||||||||
General |
|||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
| Power consumption: Max 4.5W | |||||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||||
| Dimensions (Ø x H) | Φ108.7 x 81.1mm (Ø4.3” x 3.2”) | ||||||||
| Weight | 0.425kg (0.93lb) | ||||||||
| Material | Metal | ||||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Surge Protection | 4KV | ||||||||
| Reset Button | N/A | ||||||||
Conclusion:
In conclusion, the Uniview 5MP IP Dome Camera is the perfect blend of advanced technology and reliable security. With features like LightHunter technology, NDAA compliance, and POE capabilities, it offers unmatched surveillance quality and ease of installation. Whether you need a high-quality outdoor security camera or a reliable video surveillance system, Uniview cameras provide the best in class performance. Choose Uniview for your security needs and ensure peace of mind with cutting-edge surveillance solutions.
