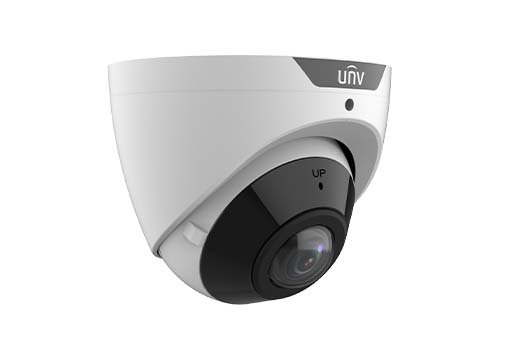

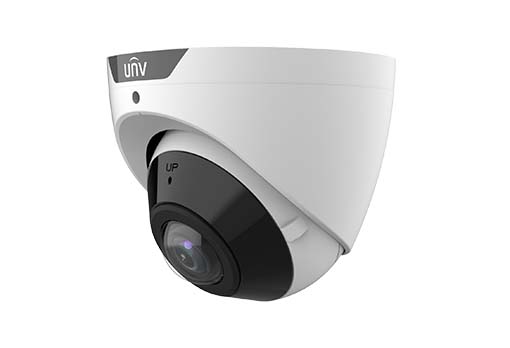

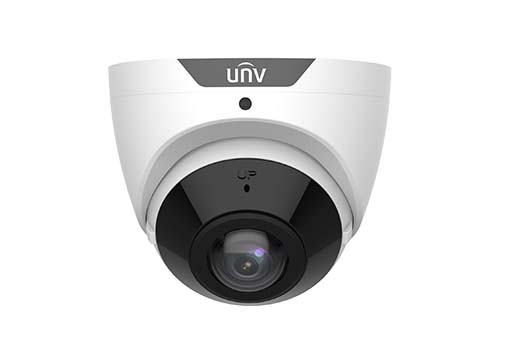

UNV 5MP IP67 NDAA Audio IP Network Uniview Eyeball Security Surveillance Camera
UNV 5MP IP67 NDAA Audio IP Network Uniview Eyeball Security Surveillance Camera
SKU:IPC3605SB-ADF16KM-I0
Regular price
$599.00 USD
Regular price
Sale price
$599.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
UNV 5MP IP67,IK10 HD Wide Angle Intelligent Weatherproof IR Uniview Eyeball Network Security Camera & 1.68mm Fixed Lens with Night Vision
Upgrade your security system with the Uniview 5MP IP67 IK10 Eyeball Network Security Camera, designed for both residential and commercial surveillance. This Uniview IP camera features a 1.68mm fixed lens for a wide-angle view and delivers crystal-clear 5MP resolution, even in low-light conditions, thanks to its advanced WDR and night vision technology. Built to withstand harsh environments, this weatherproof and vandal-proof camera is NDAA compliant, making it ideal for government and enterprise-level installations. Whether you're looking for a reliable UNV security camera, a Uniview bullet camera, or a fisheye camera, Secure IT Global offers the best Uniview 5MP camera price to meet your needs. Featuring PoE support and a built-in microphone, this Uniview surveillance solution simplifies both installation and audio monitoring.
Uniview 5MP IP Camera | NDAA Compliant Security Cameras
Key Features:
- Camera Style: Eyeball
- Compression : Ultra 265, H.265, H.264, MJPEG
- Megapixel: 5MP
- Camera Style: Eyeball
- Lens Type :Fixed Lens
- Lens Size : 1.68mm
- Environmental : outdoor
- Audio Support : Built-in Mic
Specification:
Camera |
|||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||||
| Minimum Illumination | Colour: 0.01lux (F2.0, AGC ON) 0 lux with IR on | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 75° | Rotate: 0° ~ 360° | ||||
| WDR | 120dB | ||||||
| S/N | >56dB | ||||||
Lens |
|||||||
| Lens | 1.68mm@F2.0 | ||||||
| Iris | Fixed | ||||||
| Field of View (H) | 180° | ||||||
| Field of View (V) | 100° | ||||||
| Field of View (O) | 180° | ||||||
DORI |
|||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 1.68 | 37.8(124.0ft) | 15.1(49.6ft) | 7.6(24.8ft) | 3.8(12.4ft) | |||
Illuminator |
|||||||
| IR Range | Up to 20m (66ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
Video |
|||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||
| Frame Rate | Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||||
| Video Bit Rate | 128 Kbps~10 Mbps | ||||||
| U-code | Support | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Video Stream | Triple streams | ||||||
Image |
|||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/ Flip Vertical/ Flip Horizontal/180° | ||||||
| Dewarping | Support | ||||||
| HLC | Support | ||||||
| BLC | Support | ||||||
| Defog | Digital Defog | ||||||
Intelligent |
|||||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||||
Events |
|||||||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection | ||||||
| General Function | Watermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication, User authentication | ||||||
Audio |
|||||||
| Audio Compression | G.711U, G.711A | ||||||
| Audio Bitrate | 64 Kbps | ||||||
| Two-way audio | N/A | ||||||
| Suppression | Support | ||||||
| Sampling Rate | 8KHZ | ||||||
Storage |
|||||||
| Edge Storage | Micro SD, up to 256GB | ||||||
| Network Storage | ANR, NAS(NFS) | ||||||
Network |
|||||||
| Protocols | IPv4,IPv6, IGMP,, ARP, TCP, UDP, DHCP, PPPoE, etc. | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | ||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF | ||||||
| Client | EZStation EZView EZLive | ||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
Interface |
|||||||
| Audio I/O | N/A | ||||||
| Alarm I/O | N/A | ||||||
| Serial Port | N/A | ||||||
| Built-in Mic | Support | ||||||
| Built-in Speaker | N/A | ||||||
| WIFI | N/A | ||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
| Video Output | N/A | ||||||
Certifications |
|||||||
| EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) | ||||||
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | ||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); | ||||||
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) | ||||||
General |
|||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 5.5W | |||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||
| Dimensions (Ø x H) | Φ111 x 93mm (Φ4.4”x 3.7”) | ||||||
| Weight | 0.48kg (1.06lb) | ||||||
| Material | Metal | ||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge Protection | 4KV | ||||||
| Reset Button | Support | ||||||
Conclusion:
When it comes to high-performance security solutions, Uniview security cameras deliver unmatched quality and reliability. Secure IT Global proudly offers a wide selection of Uniview 5MP IP cameras, NDAA compliant cameras, and versatile PoE options, including dome, bullet, and PTZ models. Take advantage of the competitive Uniview IP camera price and ensure complete video surveillance coverage with intelligent features like night vision, onvif support, and built-in audio. Explore our full range of UNV security cameras today and experience the future of surveillance with Uniview — trusted worldwide for excellence and innovation.
