UNV 5MP HD IP67 PoE NDAA Audio IP Uniview Eyeball Security Surveillance Camera
UNV 5MP HD IP67 PoE NDAA Audio IP Uniview Eyeball Security Surveillance Camera
SKU:IPC3615SB-ADF28KM-I0
Couldn't load pickup availability

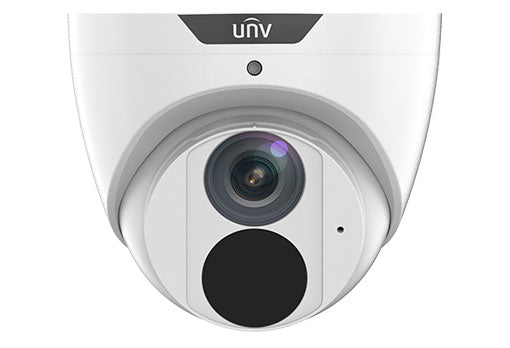

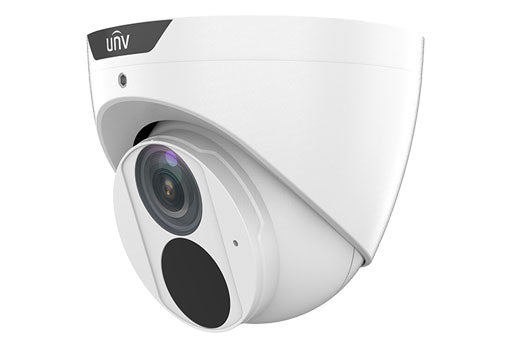

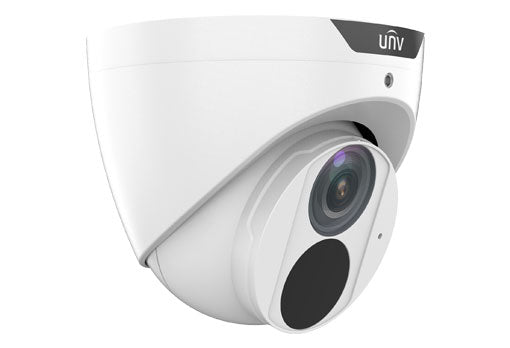

UNV 5MP HD LightHunter Eyeball IP Uniview Security Camera with 2.8mm Fixed Lens
Uniview 5MP HD LightHunter Eyeball IP Security Camera
The Uniview 5MP HD LightHunter Eyeball IP Security Camera is designed to provide superior surveillance in low-light environments. With LightHunter technology, this camera ensures ultra-high image quality even in challenging lighting conditions. Ideal for both residential and commercial applications, it offers exceptional clarity and detail. Featuring a 2.8mm fixed lens, this camera captures clear, wide-angle views and is built for durability with an IP67 weatherproof rating, making it perfect for outdoor surveillance.
This NDAA compliant camera guarantees that you're investing in a high-quality, secure solution that meets the latest compliance standards. The Uniview IP camera supports multiple video compression formats including Ultra 265, H.265, H.264, and MJPEG, ensuring optimal bandwidth efficiency. Additionally, with built-in audio support and compatibility with POE systems, the Uniview security cameras are versatile, offering both power and data transfer over a single cable.
Whether you need a POE camera for easy installation or a more advanced Uniview PTZ camera for customizable surveillance, our Uniview surveillance options provide the reliability and performance you need.
Key Features of the Uniview 5MP Security Camera :
- Compression : Ultra 265, H.265, H.264, MJPEG
- Megapixel: 5MP
- Camera Style: Eyeball
- Lens Type :Fixed Lens
- Lens Size : 2.8mm
- Protection Code : IP67
- Dimensions (Ø x H): Φ110.5 x 94.1mm (Φ4.4” x 3.7”)
- Weight:0.425kg (0.93lb)
- Environmental : outdoor
- Audio Support : Built-in Mic
Specification of the Uniview 5MP Security Camera :
Camera |
|||||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||||||
| Minimum Illumination | Colour: 0.002 lux (F1.6, AGC ON) 0 lux with IR on | ||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | ||||||
| WDR | 120dB | ||||||||
| S/N | >56dB | ||||||||
Lens |
|||||||||
| Lens | 2.8mm@F1.6 | ||||||||
| Iris | Fixed | ||||||||
| Field of View (H) | 96.1° | ||||||||
| Field of View (V) | 55.3° | ||||||||
| Field of View (D) | 111.1° | ||||||||
| DORI | |||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |||||
| Illuminator | |||||||||
| IR Range | Up to 30m (98ft) IR range | ||||||||
| Wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||||
| Frame Rate | Main Stream:5MP Sub Stream: 720P Third Stream: D1 | ||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| U-code | Support | ||||||||
| OSD | Up to 8 OSDs | ||||||||
| Privacy Mask | Up to 4 areas | ||||||||
| ROI | Up to 8 areas | ||||||||
| Video Stream | Triple streams | ||||||||
|
Image |
|||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
| Dewarping | N/A | ||||||||
| HLC | Support | ||||||||
| BLC | Support | ||||||||
| Defog | Digital Defog | ||||||||
| Intelligent | |||||||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||||||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||||||
| Events | |||||||||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection | ||||||||
| General Function | Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication | ||||||||
| Audio | |||||||||
| Audio Compression | G.711 | ||||||||
| Audio Bitrate | 64 Kbps | ||||||||
| Suppression | Support | ||||||||
| Sampling Rate | 8KHZ | ||||||||
| Storage | |||||||||
| Edge Storage | Micro SD, up to 256 GB | ||||||||
| Network Storage | ANR, NAS(NFS) | ||||||||
Network |
|||||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, etc. | ||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, digest authentication for ONVIF | ||||||||
| Client | EZStation EZView EZLive | ||||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||||
Interface |
|||||||||
| Audio I/O | N/A | ||||||||
| Alarm I/O | N/A | ||||||||
| RS485 | N/A | ||||||||
| Built-in Mic | Support | ||||||||
| Built-in Speaker | N/A | ||||||||
| WIFI | N/A | ||||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||||
| Video Output | N/A | ||||||||
Certifications |
|||||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||||
General |
|||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
| Power consumption: Max 4.0W | |||||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||||
| Dimensions (Ø x H) | Φ110.5 x 94.1mm (Φ4.4” x 3.7”) | ||||||||
| Net Weight | 0.425kg (0.93lb) | ||||||||
| Material | Metal | ||||||||
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Surge Protection | 4KV | ||||||||
| Reset Button | N/A | ||||||||
Conclusion:
The Uniview 5MP HD LightHunter Eyeball IP Security Camera is an excellent choice for anyone looking for a high-definition surveillance solution. With its NDAA compliance, robust outdoor design, and superior image quality, this camera ensures your premises are secure with cutting-edge technology. Whether you're upgrading your security system with Uniview security cameras or starting from scratch, Secure IT Global offers the best prices for these top-tier Uniview IP cameras, including POE, bullet, dome, and PTZ cameras. Invest in the best for your security needs today!
