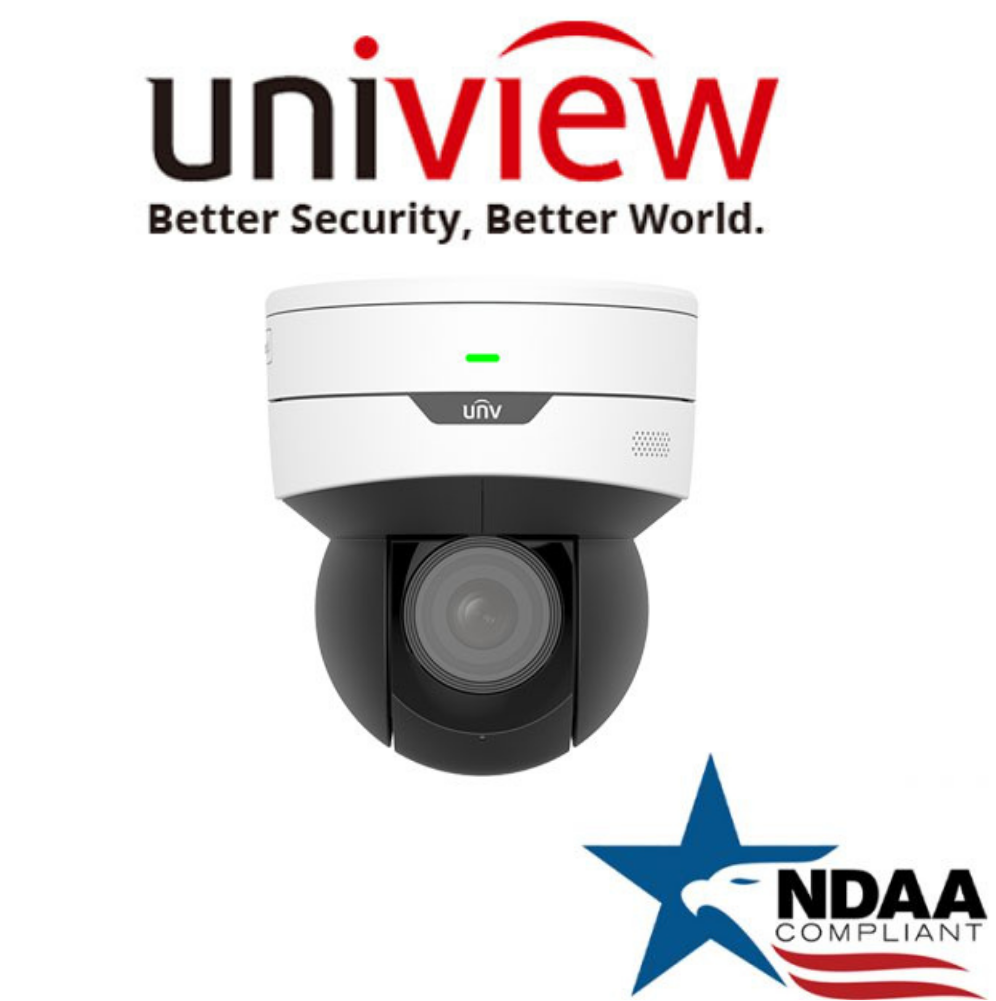

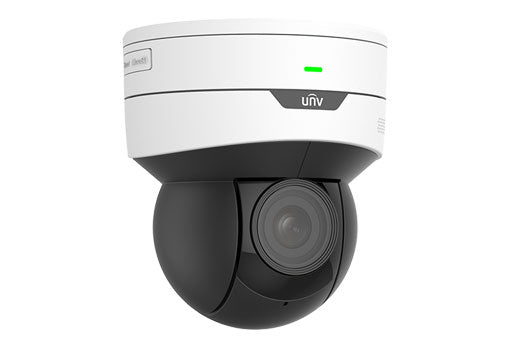

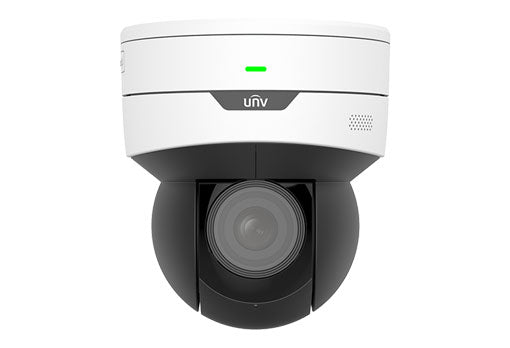

UNV 5MP HD 2-way Audio PTZ Uniview IP Network Dome Security Surveillance Camera

UNV 5MP HD 2-way Audio PTZ Uniview IP Network Dome Security Surveillance Camera

SKU:IPC6415SR-X5UPW-VG

Regular price $619.00 USD
Regular price Sale price $619.00 USD
Sale Sold out
Shipping calculated at checkout.

UNV PTZ 5MP IR Mini PTZ 2-way Audio Uniview IP Network Security Dome Camera with a 2.7-13.5mm Zoom Lens

The Uniview  PTZ is a modern technology security system.

Key Features:

Compression : Ultra 265, H.265, H.264, MJPEG
Megapixel: 5MP
Camera Style: PTZ
Lens Type :Motorized Zoom lens
Lens Size : 2.7-13.5mm
Protection Code : IP66
Dimensions (Ø x H) :Φ129 x 143.6mm (Φ5.1" x 5.7")
Weight: 0.76kg(1.67lb)
Environmental : outdoor
Audio Support : Built-in Mic

Description:

The Uniview  Mini PTZ IP Security Dome Camera is a compact yet powerful solution that can help you monitor your surroundings effectively. It is a PTZ Dome Camera with 2.7- 13.5mm Zoom Lens. It allows 5x optical zoom for closer viewing of subjects. IT's  easy to install and has wi-fi connection. It's support two way audio and built in mic & speaker. It has  Light Hunter technology  which ensures ultra-high image quality in low illumination environment .And has  Smart IR, up to 30m (98 ft) IR distance. If you're monitoring a large parking lot or a small backyard this camera provides the flexibility you need.
Uniview IPC6415SR-X5UPW-VG

Specification:


Camera
Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS
Min. Illumination Colour:0.003 lux (F1.2, AGC ON)
0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB
S/N >56dB
Lens
Lens type 2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens
Iris Auto aperture
Field of View (H) 106.9°~30.6°
Field of View (V) 56.0°~17.7°
Field of View (D) 131.5°~39.8°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.7 70.9(232.5ft) 28.4(93.0ft) 14.2(46.5ft) 7.1(23.3ft)
13.5 247.5(812.0ft) 99.0(324.8ft) 49.5(162.4ft) 24.8(81.2ft)
Illuminator
IR Range Up to 30m (98 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 5MP (2880*1620),Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
ROI Support
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask 24 areas, up to 4 areas per scene
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°
HLC Support
BLC Support
Defog Digital Defog
Intelligent
Smart Intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Events
Basic Detection Motion detection, Audio detection, Tampering alarm
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, etc
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and common user
Security Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP,
Client EZStation
EZLive
EZView
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range 350°
Pan Speed 0.1°/s ~ 60°/s
Preset speed: 60°/s
Tilt Range 0° ~ 90°
Tilt Speed 0.1° ~ 50°/s
Preset speed: 50°/s
Number of Presets 1024
Preset Patrol 16 patrols, up to 64 presets for each patrol
Patrol Stay Time 120s~1800s
Preset Image Freeze N/A
Home Position Support
Interface
Alarm I/O 1/1
Serial Port 1 RS485
Built-in Mic Support
Built-in Speaker Support
WIFI Support (IEEE802.11b/g/n)
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video output N/A
Certification
EMC CE-EMC
RF FCC ID (FCC CFR 47 part15 C)
CE RED
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL
Environment CE-ROHS (2011/65/EU;(EU)2015/863)
General
Power DC12V(±25%), PoE+(IEEE 802.3at)
Power consumption: Max 15W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (Ø x H) Φ129 x 143.6mm (Φ5.1" x 5.7")
Weight 0.76kg(1.67lb)
Working Environment -10℃~50℃(14°F ~ 122°F),Humidity: ≤95% RH (non-condensing)
Storage Environment -40℃~70℃(-40°F ~ 158°F),Humidity: ≤95% RH (non-condensing)
Surge protection 4KV
Reset Button Support
