UNV 2MP PTZ 1080p NDAA 2-way Audio Lighthunter Uniview IP Network SecurityCamera
UNV 2MP PTZ 1080p NDAA 2-way Audio Lighthunter Uniview IP Network SecurityCamera
SKU:IPC6622SR-X33-VF
Couldn't load pickup availability

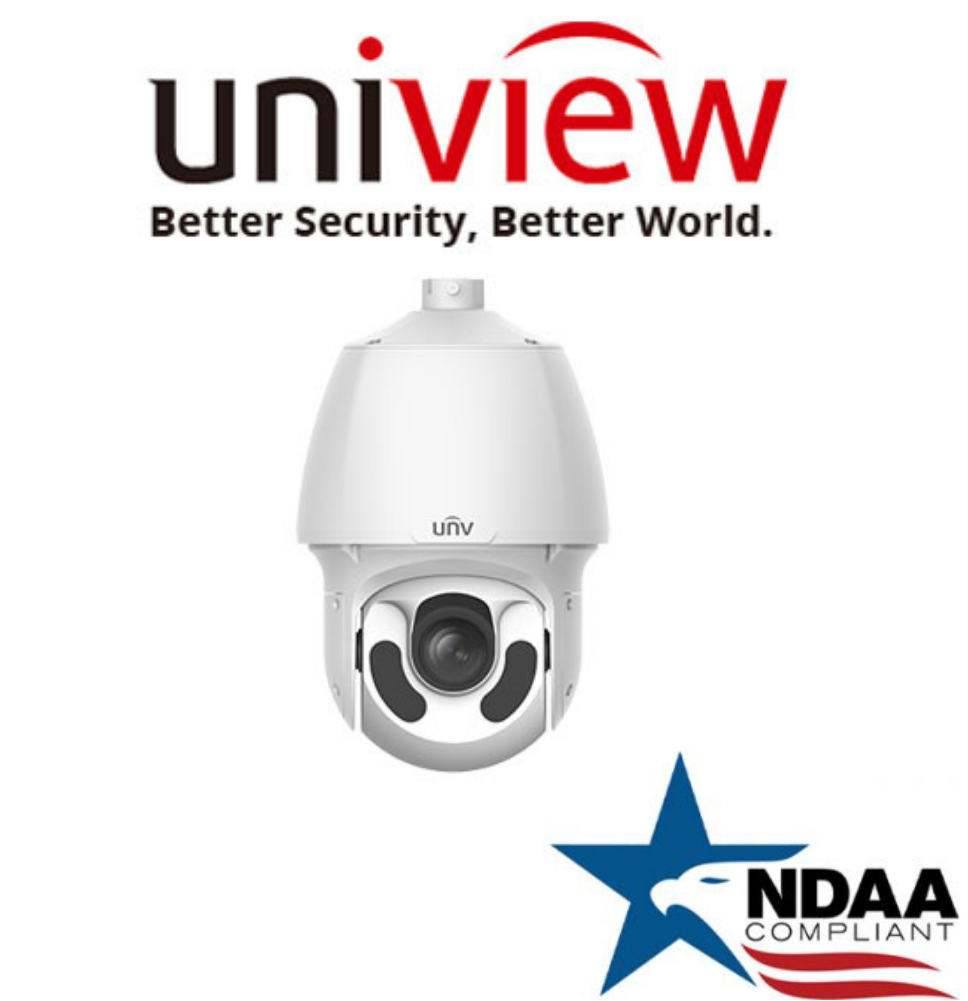

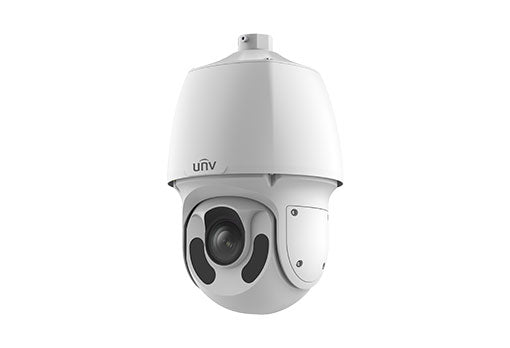

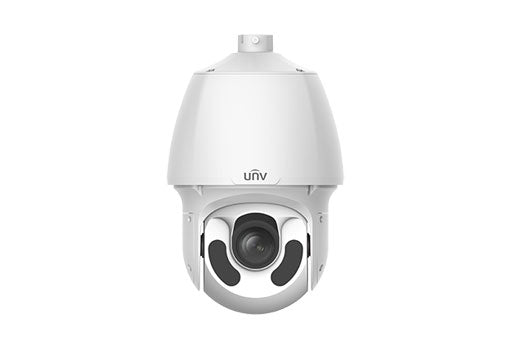

UNV 1080p 2MP IP66 FullHD PTZ NDAA 2-Way Audio Uniview IP Network Security Dome Camera with 4.5 ~ 148.5mm zoom lens
Secure IT Global brings you the Uniview 2MP PTZ IP Security Dome Camera, a powerful outdoor surveillance solution combining high-definition video, motorized zoom, and NDAA compliance. Whether for business or home use, this Uniview IP camera offers unbeatable clarity and control.
Key Features of the Uniview 2MP IP Camera :
- Compression : Ultra 265, H.265, H.264, MJPEG
- Megapixel: 2MP
- Camera Style: PTZ
- Lens Type :Motorized Zoom lens
- Lens Size : 4.5~ 148.5mm
- Protection Code : IP66
- Dimensions (Ø x H) :Φ227mm*384.8mm (Φ8.9”x 15.1”)
- Weight: 5.39kg (11.88lb)
- Environmental : outdoor
Uniview 2MP PTZ IP Security Dome Camera – NDAA Compliant, Outdoor Full HD Surveillance
In today's fast-paced world security is paramount. Whether it's safeguarding your home or protecting your business having a reliable security system in place is no longer a luxury it's a necessity. The Uniview Outdoor Full HD PTZ IP Security Dome Camera represents a significant step forward in modern surveillance technology. The Uniview takes PTZ capabilities to the next level. PTZ or Pan-Tilt-Zoom cameras, offer unparalleled flexibility when it comes to monitoring your surroundings. With Full HD resolution this camera ensures that every detail is crystal clear. With remote monitoring capabilities you can check in on your property from anywhere in the world. Stay connected and in control 24/7.
This Uniview security camera is built to withstand tough conditions with an IP66 weatherproof rating, making it perfect for outdoor use. It supports advanced video compression formats including Ultra 265, H.265, and H.264, ensuring efficient storage without compromising quality.
Thanks to its NDAA compliant design, this camera meets U.S. government procurement standards. With 2-way audio, users can listen and speak in real-time, adding an extra layer of interactive security.
Compatible with ONVIF POE camera systems, this Uniview dome camera easily integrates into existing infrastructure. Ideal for retail spaces, warehouses, or residential properties, this Uniview surveillance camera offers trusted performance from a globally recognized brand.
Specification of the Uniview 2MP IP Camera :
Camera |
|||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | ||||
| Min. Illumination | Colour: 0.001 Lux (F1.5, AGC ON) 0 Lux with IR |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| WDR | 120dB | ||||
| S/N | >52dB | ||||
Lens |
|||||
| Lens | 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 16 | ||||
| Optical Zoom | 33 | ||||
| Iris | Auto; F1.5 ~ F4.0 | ||||
| Field of View (H) | 56.2° ~ 2.6° | ||||
| Field of View (V) | 33.5° ~ 1.4° | ||||
| Field of View (D) | 69.1° ~ 3.1° | ||||
DORI |
|||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4.5 | 72.9(239.3ft) | 29.2(95.7ft) | 14.6(47.9ft) | 7.3(23.9ft) | |
| 148.5 | 2187.9 (7178.3ft) | 875.2(2871.3ft) | 437.6(1435.7ft) | 218.8(717.8ft) | |
Illuminator |
|||||
| IR Range | Up to 150m (492 ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
Video |
|||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 2MP(1920*1080),Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps; |
||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| U-code | Support | ||||
| ROI | Support | ||||
| Video Stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | 24 areas, up to 4 areas per scene | ||||
Image |
|||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
Intelligent |
|||||
| Smart Intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
| People Counting | Support people flow counting and crowd density monitoring | ||||
Events |
|||||
| Basic Detection | Motion detection, Audio detection, Tampering Alarm | ||||
| Auto Tracking | Support | ||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, | ||||
Audio |
|||||
| Audio Compression | G.711U,G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Two-way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8 kHz | ||||
Storage |
|||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
Network |
|||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, etc. | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | ||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, digest authentication for ONVIF | ||||
| Client | EZStation EZLive EZView |
||||
| Web Browser | Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||
| Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
Pan & Tilt |
|||||
| Pan Range | 360° (endless) | ||||
| Pan Speed | 0.1°/s ~ 200°/s | ||||
| Preset speed: 300°/s | |||||
| Tilt Range | –15° ~ 90° (auto reverse) | ||||
| Tilt Speed | 0.1° ~ 200°/s | ||||
| Preset speed: 240°/s | |||||
| Number of Presets | 1024 | ||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | ||||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | ||||
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol | ||||
| Patrol Stay Time | 15s~1800s | ||||
| Preset Image Freeze | Support | ||||
| Home Position | Support | ||||
Interface |
|||||
| Audio I/O | 1/1 | ||||
| Alarm I/O | 2/1 | ||||
| Serial Port | 1 RS485 | ||||
| Built-in Mic | N/A | ||||
| Built-in Speaker | N/A | ||||
| WIFI | N/A | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Video Output | 1 BNC | ||||
Certification |
|||||
| EMC | CE-EMC FCC |
||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL |
||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | ||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||
General |
|||||
| Power | AC 24V±25%, DC 24V±25%, PoE (PSE Required) | ||||
| Power consumption: Max 41W | |||||
| Power Interface | Wires with cold-pressed terminal | ||||
| Dimensions (Ø x H) | Ø227 x 384.8mm (Ø8.9” x 15.1”) | ||||
| Weight | 5.39kg(11.88lb) | ||||
| Working Environment | -40°C ~70°C (-40°F ~ 158°F) | ||||
| Storage Environment | -40°C ~70°C (-40°F ~ 158°F) | ||||
| Surge protection | 6KV | ||||
| Reset Button | Support | ||||
