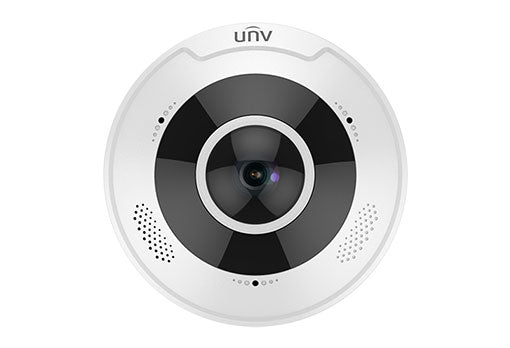

UNV 12MP IP67 NDAA 2-Way Audio HD Fisheye Fixed Dome Uniview Security Camera
UNV 12MP IP67 NDAA 2-Way Audio HD Fisheye Fixed Dome Uniview Security Camera
SKU:IPC86CEB-AF18KC-I0
Couldn't load pickup availability
UNV Fisheye 12MP IP67,IK10 Outdoor Ultra HD Panoramic IR Dome NDAA 2-Way Audio Uniview Security Camera 1.8mm Fixed Lens with Night Vision
Secure your property with the Uniview 12MP Fisheye IP Camera, a next-gen surveillance solution built for demanding environments. This NDAA compliant Uniview security camera offers ultra-wide panoramic coverage, superior night vision, and rugged outdoor protection with IP67 and IK10 ratings.
Key Features of Uniview 12MP Fisheye Camera:
- Camera Style: Fisheye
- Megapixel: 12MP
- Compression : Ultra 265, H.265, H.264, MJPEG
- Lens Type : Fixed Lens
- Lens Size : 1.8mm
- Protection Code : IP67,IK10
- Environmental : outdoor
- Audio Support : Built-in Mic
Description:
The Uniview 12MP IP Camera is a top-tier solution in modern surveillance, designed for those who demand wide-area monitoring with maximum clarity. Featuring a 1.8mm fixed lens fisheye design, this Uniview fisheye camera captures ultra HD panoramic footage, eliminating blind spots and reducing the number of cameras required.
Engineered with NDAA compliance, it’s the perfect choice for government, business, or residential use. The Uniview 12MP IP67 IK10 camera is protected against water, dust, and vandalism, making it ideal for harsh outdoor environments. Built-in microphone supports 2-way audio, allowing you to listen and communicate in real time—an essential feature for active deterrence.
Thanks to Ultra 265 compression, it saves bandwidth and storage without compromising image quality. It also supports night vision, enabling clear footage even in complete darkness. Whether you need a solution for wide-area video coverage or a compact setup for large spaces, this UNV IP camera fits the need.
Compatible with Onvif POE camera systems, this Uniview surveillance camera integrates easily with most NVRs. Use it in smart homes, offices, or public spaces where visibility and compliance matter most.
Specification of UNV NDAA 12MP Fisheye Camera:
Camera |
|||||
Sensor | 1/1.7", 12.0 megapixel, progressive scan, CMOS | ||||
Minimum Illumination | Colour: 0.03Lux (F2.0, AGC ON) 0Lux with IR | ||||
Day / Night | IR-cut filter with auto switch (ICR) | ||||
Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | ||||
WDR | DWDR | ||||
S/N | >52dB | ||||
Lens |
|||||
Lens type | 1.8mm@F2.0 | ||||
Field of View | 360° | ||||
DORI |
|||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
1.8 | 43.8 | 17.5 | 8.8 | 4.4 | |
Illuminator |
|||||
IR Range | Up to 15m (49ft) IR range | ||||
wavelength | 850nm | ||||
IR On/Off Control | Auto/Manual | ||||
Video |
|||||
Compression | Ultra265, H.265, H.264, MJPEG | ||||
H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
Main Stream | Fisheye View: 12MP Panorama View: 12MP PTZ View: 1920*1080@20/25fps; | ||||
Sub Stream | Fisheye View:2000*1500@20fps;2000*2000@25fps | ||||
Third Stream | Fisheye View:D1 | ||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||
U-code | Support | ||||
OSD | Up to 8 OSDs | ||||
Privacy Mask | Up to 4 areas | ||||
ROI | Up to 8 areas | ||||
Video stream | Triple streams | ||||
Live View Display |
|||||
Mount Type | Support table, wall, and ceiling | ||||
Hardware Decoding | Ceiling mount: fisheye view, fisheye + 4PTZ, Table mount: fisheye view, fisheye + 4PTZ, Wall mount: fisheye view, fisheye + 4PTZ, | ||||
Software Decoding | Ceiling mount: fisheye view, 360° panorama + 1PTZ, Table mount: fisheye view, 360° panorama + 1PTZ, Wall mount: fisheye view, 180° panorama view, |
Image |
|
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Digital noise reduction | 2D/3D DNR |
Smart IR | Support |
Flip | Normal/Flip Vertical/ Flip Horizontal/180° |
Dewarping | N/A |
HLC | N/A |
BLC | Support |
Defog | Digital Defog |
Intelligent |
Smart intrusion prevention | Cross Line detection, Intrusion detection |
Statistical Analysis | Heat map(Working with management platform) |
Events |
Basic Detection | Motion detection, Audio detection, Tampering alarm |
General Function | Watermark, IP Address Filtering, Tampering Alarm ,Alarm input, RTSP Authentication, User Authentication |
Audio |
|
Audio Compression | G.711U, G.711A |
Audio Bitrate | 64 Kbps |
Two-way audio | Support |
Suppression | Support |
Sampling Rate | 8KHZ |
Storage |
|
Edge Storage | Micro SD, up to 256GB |
Network Storage | ANR, NAS(NFS) |
Network |
|
Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, etc. |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK |
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
Client | EZStation EZView EZLive |
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
Interface |
|
Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] |
Output: impedance 600Ω; amplitude 2V [p-p] | |
Alarm I/O | 2/1 |
Multiple Alarm linkage editable | |
Built-in Mic | Two Mics |
Built-in Speaker | Support |
Serial | 1 channel RS485 interface |
Network | 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet |
Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] |
Certifications |
|
EMC | CE-EMC FCC |
Safety | CE LVD CB UL |
Environment | CE-RoHS |
Protection | IP67 IK10 |
General |
|
Power | DC 12V±25%, PoE |
Power consumption: Max 12W | |
Dimensions (Ø x H) | Φ149 x 55mm (Φ5.9” x 2.2”) |
Weight | 524g |
Material | Metal + Plastic |
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH |
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH |
surge protection | 4kv |
Reset Button | Support |
