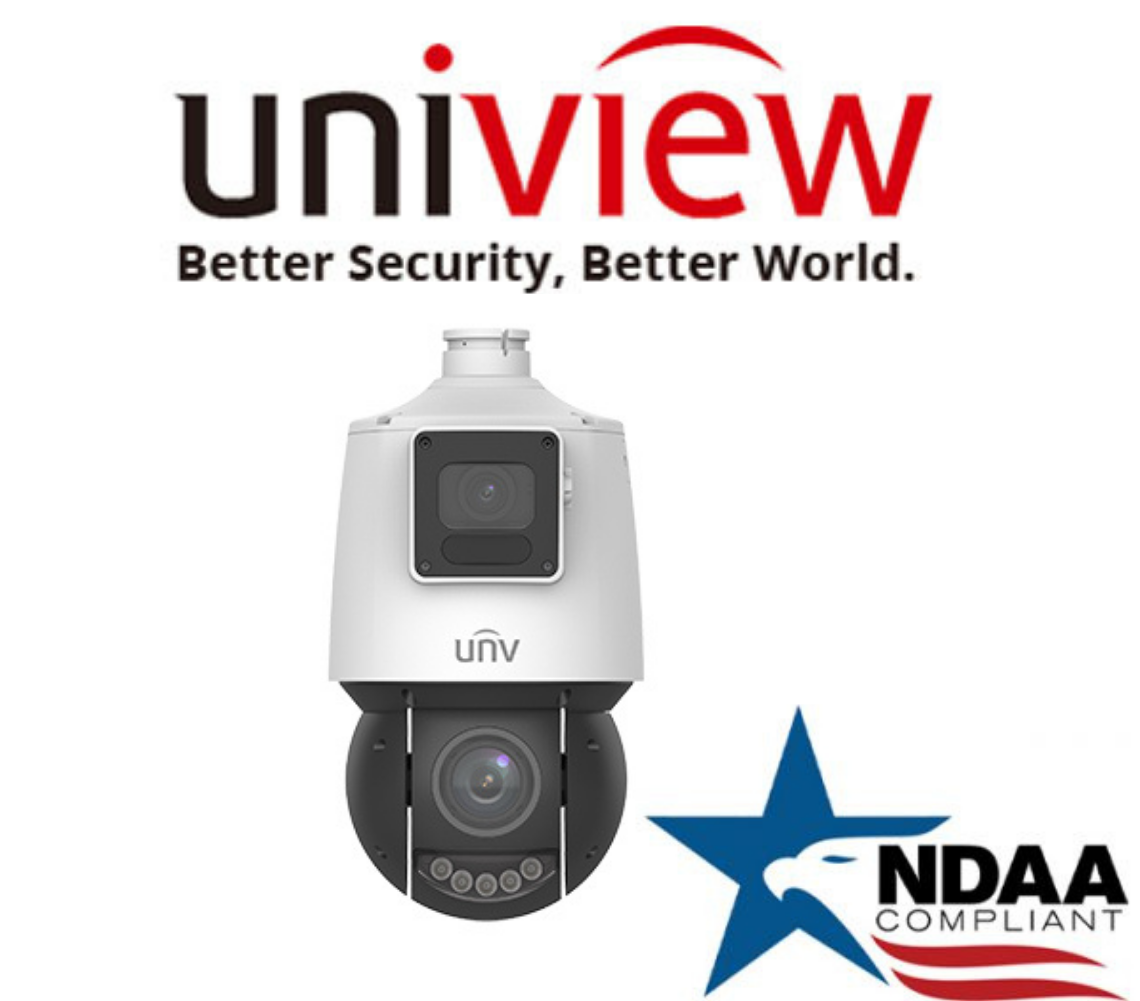

UNV 4MP PoE+PTZ NDAA Audio Outdoor Uniview IP Dual-lens Network Security Camera
UNV 4MP PoE+PTZ NDAA Audio Outdoor Uniview IP Dual-lens Network Security Camera
SKU:IPC94144SR-X25-F40C
Regular price
$1,129.00 USD
Regular price
Sale price
$1,129.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

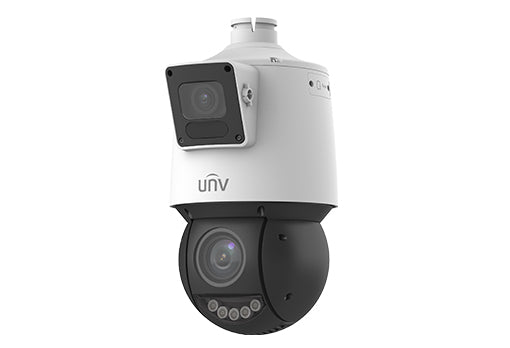

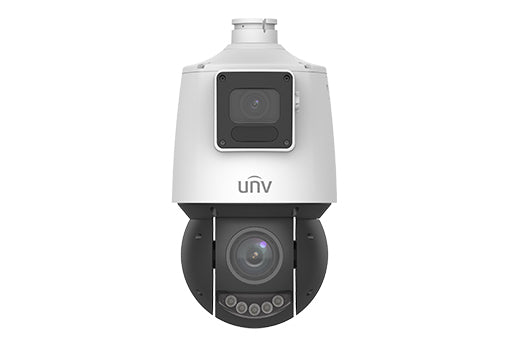

UNV 4MP IP66 Dual Weatherproof PTZ by Uniview IP Security Camera with 4mm & 4.8~120mm Motorized Zoom Lens
The Uniview PTZ is a best invention of dual lens security camera.
Key Features:
Camera Style: PTZ
Resolution: 4MP+4MP
Compression: Ultra 265, H.265, H.264, MJPEG
Lens Type : motorized zoom lens
Lens Size : 4mm Lens 4.8~120mm Lens
Protection Code : IP66
Color : White
Environmental : Outdoor
Description:
The Uniview PTZ IP security camera a cutting-edge solution designed to meet your security needs. PTZ stands for Pan, Tilt, and Zoom and these cameras offer a wide range of motion and flexibility compared to traditional fixed cameras. PTZ cameras can be controlled remotely making them suitable for various surveillance applications. The camera's rug construction is design to withstand various weather conditions making it ideal for both indoor and outdoor use. The Uniview PTZ IP security camera is a powerful tool for enhancing your security measures.
Specification:
Camera |
Panorama | Detail | ||||
| Sensor | 1/2.7", 4MP, CMOS | 1/2.7", 4MP, CMOS | ||||
| Min. Illumination | Color:0.003 lux (F1.6, AGC ON) 0 lux with IR |
Color:0.003 lux (F1.5, AGC ON) 0 lux with IR |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| WDR | 120dB | |||||
| S/N | ＞56dB | |||||
Lens |
||||||
| Lens type | 4mm@F1.6 | 4.8~120mm@F1.5, AF automatic focusing and motorized zoom lens |
||||
| Optical Zoom | N/A | 25X | ||||
| Iris | Fixed aperture; F1.6 | Auto; F1.5(W)~F3.8(T) | ||||
| Angle of View (H) | 91.3° | 55.46° ~ 3.09° | ||||
| Angle of View (V) | 51.5° | 32.94° ~ 1.73° | ||||
| Angle of View (O) | 112.3° | 68.22° ~ 3.65° | ||||
DORI |
||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 4 (Panorama) | 90.0 (295.3 ft) | 36.0 (118.1 ft) | 18.0 (59.1 ft) | 9.0 (29.5 ft) | ||
| 4.8 (Detail | 123.8 (406.0 ft) | 49.5 (162.4 ft) | 24.8 (81.2 ft) | 12.4 (40.6 ft) | ||
| 120 (Detail) | 2475.0 (8120.1 ft) | 990.0 (3248.0 ft) | 495.0 (1624.0 ft) | 247.5 (812.0 ft) | ||
Illuminator |
||||||
| IR Range | Up to 30m (98.4 ft) | Up to 100m (328.1 ft) | ||||
| Wavelength | 850nm (IR) | |||||
| Light On/Off Control | Auto/Manual | |||||
Video |
||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| Frame Rate | Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; |
Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; |
||||
| Video Bit Rate | 128 Kbps ~ 16 Mbps | |||||
| U-code | Support | |||||
| ROI | Up to 8 areas | |||||
| Video stream | Triple streams | |||||
| OSD | Up to 8 OSDs | |||||
| Privacy Mask | Up to 4 areas per scene | 24 areas, up to 4 areas per scene | ||||
Image |
||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180° | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Defog | Digital defog | |||||
Intelligent |
||||||
| Smart Intrusion Prevention | Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection | |||||
| People Counting | Support people flow counting and crowd density monitoring | |||||
| Linkage Function | Support. Triggered by fixed lens via smart intrusion prevention function to track target | N/A | ||||
Events |
||||||
| Basic Detection | Motion detection, Audio detection, Tampering Alarm | |||||
| Auto Tracking | N/A | Support | ||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
Audio |
||||||
| Audio Compression | G.711U, G.711A | |||||
| Audio Bitrate | 64 Kbps | |||||
| Two-way Audio | Support | |||||
| Suppression | Support | |||||
| Sampling Rate | 8 kHz | |||||
Storage |
||||||
| Edge Storage | Micro SD, up to 256 GB | |||||
| Network Storage | ANR, NAS(NFS) | |||||
Network |
||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, etc. | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | |||||
| Security | Password protection, strong password, HTTPS encryption, digest authentication for ONVIF | |||||
| Client | EZStation EZLive EZView |
|||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
Pan & Tilt |
||||||
| Pan Range | N/A | 360° | ||||
| Pan Speed | N/A | 0.1°/s ~ 80°/s | ||||
| Preset speed: N/A | Preset speed: 80°/s | |||||
| Tilt Range | 18° ± 5° | -15° ~ 90° | ||||
| Tilt Speed | N/A | 0.1°/s ~ 80°/s | ||||
| Preset speed: N/A | Preset speed: 80°/s | |||||
| Number of Presets | 1024 | |||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |||||
| Patrol Stay Time | 15s~1800s | |||||
| Preset Image Freeze | N/A | |||||
| Home Position | Support | |||||
Interface |
||||||
| Audio I/O | 1/1 | |||||
| Alarm I/O | 2/1 | |||||
| Serial Port | 1 RS485 | |||||
| Built-in Mic | N/A | |||||
| Built-in Speaker | Support | |||||
| Wi-Fi | N/A | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
| Video Output | N/A | |||||
Certification |
||||||
| EMC | CE-EMC FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||
General |
||||||
| Power | DC12V (±25%), PoE+(IEEE 802.3at) | |||||
| Power consumption: MAX 24W | ||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||
| Dimensions (Ø x H) | Φ163 x 304mm (Φ6.4” x 12.0”) | |||||
| Weight | 2.27kg (5.00lb) | |||||
| Working Environment | -40℃ ~ +65℃(-40°F ~ +149°F)，Humidity: ≤95% RH (non-condensing) | |||||
| Storage Environment | -40℃ ~ +70℃(-40°F ~ +158°F)，Humidity: ≤95% RH (non-condensing) | |||||
| Surge protection | 6KV | |||||
| Reset button | Support | |||||
