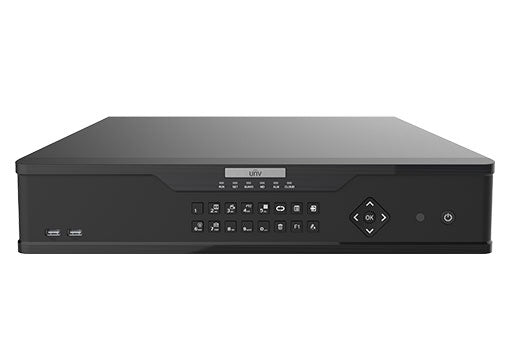

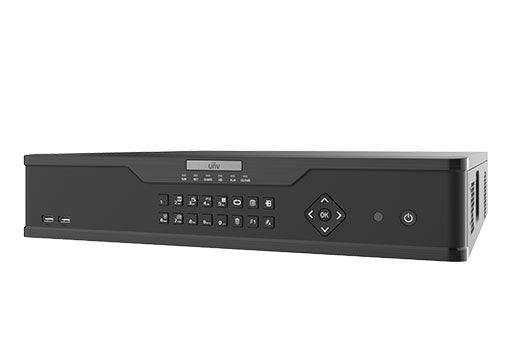

UNV 12MP 16-Ch 4 SATA NDAA ONVIF 2-way Audio Uniview IP Network Security NVR
UNV 12MP 16-Ch 4 SATA NDAA ONVIF 2-way Audio Uniview IP Network Security NVR
SKU:NVR304-16X
Regular price
$1,879.00 USD
Regular price
Sale price
$1,879.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
UNV 16-Ch 4 SATA NDAA ONVIF 2-way Audio Uniview IP Network Security NVR
The Uniview 16-Ch 10TB security NVR is every person choice.
Key Features:
Compression: Ultra 265/H.265/H.264
Channel:16
Pre-Installed Storage: No HDD
Video output:1-ch HDMI, 1-ch VGA
Max.Recording Resolution:12MP
Hard drive Ports:4 SATA interfaces
Max.Storage Capacity:10TB
Color:Black
Description:
The Uniview Network Video Recorder, a formidable player in the world of surveillance technology. Security is a concern that knows no boundaries. Uniview, a leading player in the surveillance industry has introduce the network video recorder that promises to redefine the way we monitor our surroundings. With support for up to 16 channels this NVR allows you to connect multiple cameras covering every angle of your property without compromising on quality. The Uniview seamlessly integrates with a wide range of IP cameras offering flexibility and choice to users.
Specification:
| Model | |||
Video/Audio Input |
|||
| IP Video Input | 16-ch | 32-ch | |
| Two-way Audio Input | 1-ch, RCA | ||
Network |
|||
| Incoming Bandwidth | 384Mbps | ||
| Outgoing Bandwidth | 384Mbps | ||
| Remote Users | 128 | ||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS | ||
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows | ||
Video/Audio Output |
|||
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2(HDMI audio output is not supported): 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | ||
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Audio Output | 1-ch, RCA | ||
| Audio Compression | G.711A, G.711U | ||
| Synchronous Playback | 16-ch | ||
| Live view display | 1/4/6/8/9/16 | 1/4/6/8/9/16/25/36 | |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16/32 | |
Snapshot |
|||
| FTP/Schedule/Event Snapshot | 16-ch snapshot, up to 4K resolution | 32-ch snapshot, up to 4K resolution | |
Decoding |
|||
| Decoding format | Ultra 265, H.265, H.264 | ||
| Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Capability | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080p@30 | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080p@30, 32 x 960p@25 | |
Hard Disk |
|||
| SATA | 4 SATA interfaces | ||
| Capacity | up to 10TB for each HDD | ||
| eSATA | 1 eSATA interface | ||
| Disk Group | Support | ||
Disk Array |
|||
| Array Type | RAID 1, 5 | ||
Smart |
|||
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Auto Tracking, Object Left Behind, Object Removed, Vehicle Control | ||
| VCA Search | Behavior Search, Vehicle Search | ||
| People Counting | People Flow Counting, Crowd Density Monitoring | ||
| Smart Intrusion Prevention (SIP) by Camera | 16-ch | ||
General Alarm |
|||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm input, Audio Detection | ||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||
External Interface |
|||
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | ||
| USB Interface | Front panel: 2 x USB2.0 Rear panel: 1 x USB3.0 | ||
| RS232 | 1 | ||
| RS485 | 1 | ||
| Alarm In | 16-ch | ||
| Alarm Out | 4-ch | ||
General |
|||
| Power Supply | 100~240 VAC Power Consumption: ≤ 25 W (without HDD) | ||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | ||
| Dimensions (W×D×H) | 442mm ×426mm× 89mm (17.4" × 16.8"× 3.5") | ||
| Weight (without HDD) | ≤ 5.7Kg (12.57lb) | ||
Certification |
|||
| Certification | CE, FCC, UL, RoHS, WEEE | ||
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | ||
| FCC | Part15 Subpart B, ANSI C63.4 | ||
