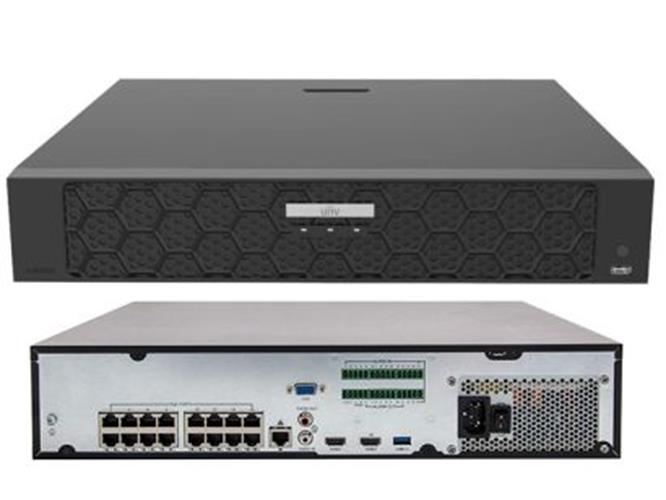

UNV 32-Ch 16MP 4 SATA HDDs Audio NDAA Uniview Security Surveillance Recorder NVR
UNV 32-Ch 16MP 4 SATA HDDs Audio NDAA Uniview Security Surveillance Recorder NVR
SKU:NVR504-32B-P16
Regular price
$1,559.00 USD
Regular price
Sale price
$1,559.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
UNV 32-Ch 16MP 4 SATA HDDs Audio PoE NDAA Uniview Network Security Surveillance Recorder NVR
Features:
Support Ultra 265/H.265/H.264 video formats
16/32-channel input
Plug & Play with 16 independent PoE network interfaces
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
VGA and HDMI independent output
Up to 16 Megapixels resolution recording
4 SATA HDD, up to 10TB for each HDD
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Specification:
Video/Audio Input | ||
IP Video Input | 32-ch | |
Audio Input | 1-ch, RCA |
Network | ||
Incoming bandwidth | 320Mbps | |
Outgoing bandwidth | 160Mbps | |
Remote Users | 128 | |
Protocols | TCP/IP,P2P,UPnP,NTP,DHCP,PPPoE,HTTP,HTTPS,DNS,DDNS,SNMP,SMTP,RTSP,802.1x,IPV6 |
Video/Audio Output | ||
Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Audio Output | 1-ch, RCA | |
Two-way Audio | 1-ch, RCA(Using the audio input and output) | |
Audio Compression | G.711A, G.711U | |
Synchronous Playback | 16-ch |
Snapshot | ||
FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution |
Hard Disk | ||
SATA | 4 SATA interfaces | |
Capacity | Up to 8TB for each disk |
General Alarm | ||
General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | |
Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, |
External Interface | ||
Network Interface | 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | |
USB Interface | Front: 1 x USB2.0, Rear panel: 1 x USB3.0, 1 x USB2.0 | |
RS232 | NA | |
RS485 | 1 | |
Alarm In | 16-ch | |
Alarm Out | 4-ch |
General | ||
Power Supply | 12V DC/5A Power Consumption: ≤ 20W (without HDD) |
|
Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
Dimensions (W×D×H) | 440mm × 344mm × 48mm (17.3" × 13.5" × 1.9") | |
Weight (without HDD) | ≤ 3.15Kg (6.94lb) |
Certification | ||
Certification | CE, FCC, UL, RoHS, WEEE | |
CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |
FCC | Part15 Subpart B |
