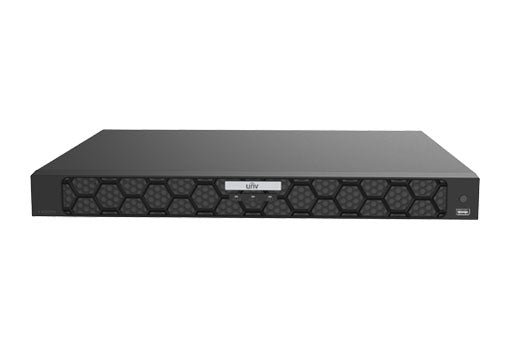

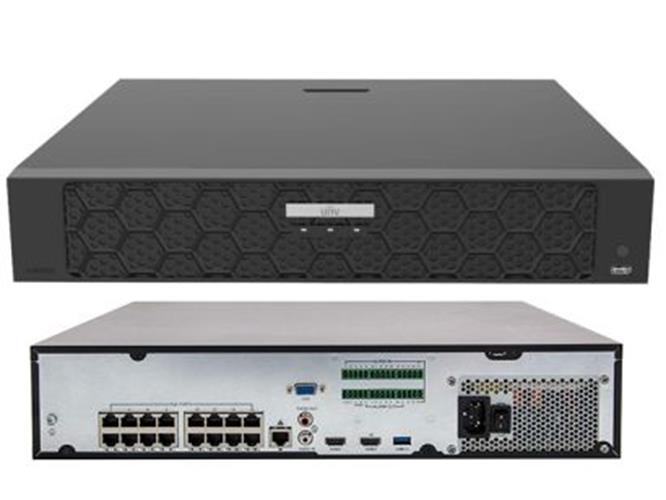

UNV 32-Ch 16MP 2 SATA HDDs Audio NDAA Uniview Security Surveillance Recorder NVR
UNV 32-Ch 16MP 2 SATA HDDs Audio NDAA Uniview Security Surveillance Recorder NVR
SKU:NVR504-32B-P16-IQ
Couldn't load pickup availability
UNV 32-Ch 16MP 2 SATA HDDs Audio PoE NDAA Uniview Network Security Surveillance Recorder NVR
Features
Support Ultra 265/H.265/H.264 video formats
32-channel input
Plug & Play with 16 independent PoE network interfaces
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
VGA and HDMI independent output
Up to 16 Megapixels resolution recording
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Specification:
|
Decoding |
Description |
|
Decoding
Format |
Ultra 265,H.265,H.264 |
|
Audio Compression |
G.711A,G.711U |
|
Network |
Description |
|
Incoming Bandwidth |
Smart Off：320Mbps Smart On：160Mbps |
|
Outgoing Bandwidth |
160Mbps |
|
Remote Users |
128 |
|
Protocols |
TCP/IP;P2P;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802 .1x;IPV6 |
|
Browser(Plugin) |
Windows: IE(IE10/11),Firefox
(version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above) |
Audio & Vedio
|
Video/Audio Output |
Description |
|
HDMI Output |
HDMI:4K(3840x2160)/30Hz,
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
VGA Output |
VGA:1920x1080p/60Hz,
1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
RCA Audio Output |
1-ch |
|
Two-way Audio |
Description |
|
Two-way Audio |
1-ch,RCA(Using the audio input
and output) |
|
Snapshot |
Description |
|
FTP/Schedule/Event Snapshot |
4-ch snapshot,up
to 4K resolution |
|
Recording |
Description |
|
Recording
Resolution |
16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
|
Synchronous
Playback in Local |
16-ch |
Smart NVR
|
Smart |
Description |
|
VCA Detection by IPC |
Vehicle
Detection; SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion
Detection(UMD);Temperature Detection(Fire Detection, Smoking Detection, Temperature |
|
Smart by NVR |
Smart Intrusion Prevention (SIP);Ultra Motion Detection(UMD) |
|
VCA Search |
Motor
Vehicle Search;Non-Motor Vehicle Search;Human Body Search;General Search;People Counting Report;Heat Map |
|
Smart by IPC |
All channels (up to 8 images/s in total) Vehicle Detection,Temperature Detection,SIP,UMD,Video Metadata,Traffic Monitoring |
|
Search by Image |
Support |
|
Vehicle Picture Library |
Up to 5 vehicle picture libraries with up to 25,000
vehicle pictures in total |
|
SIP by NVR |
4-ch |
|
UMD by NVR |
8-ch |
|
Capacity of Snapshot Records |
2 millions
records for vehicle snapshot;3 millions records for SIP;2 millions records
for video Metadata |
|
Alarm |
Description |
|
General Alarm |
Defocus
Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion
Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection |
|
Alert Alarm |
IP
Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard
Disk Space Low;Hard Disk
Full;Recording/Snapshot Abnormal;Array Damaged;Array Degraded |
Hard Disk Details
|
Hard Disk |
Description |
|
SATA |
4 SATA Interfaces |
|
Capacity |
Up to 16TB
for each HDD(The maximum HDD capacity varies with environment temperature) |
|
Disk Group |
Support |
|
Redundant
Storage |
Support |
|
Disk Array Type |
RAID 1,5 |
|
External Interface |
Description |
|
Network Interface |
1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
|
USB |
Front
panel: 1 x USB2.0;Rear panel: 1 x USB2.0, 1 x USB3.0 |
|
RS485 |
1 |
|
RS232 |
N/A |
|
Alarm In |
16-ch |
|
Alarm Out |
4-ch |
|
Power Supply |
AC 100~240V |
|
Power Switch |
Support |
