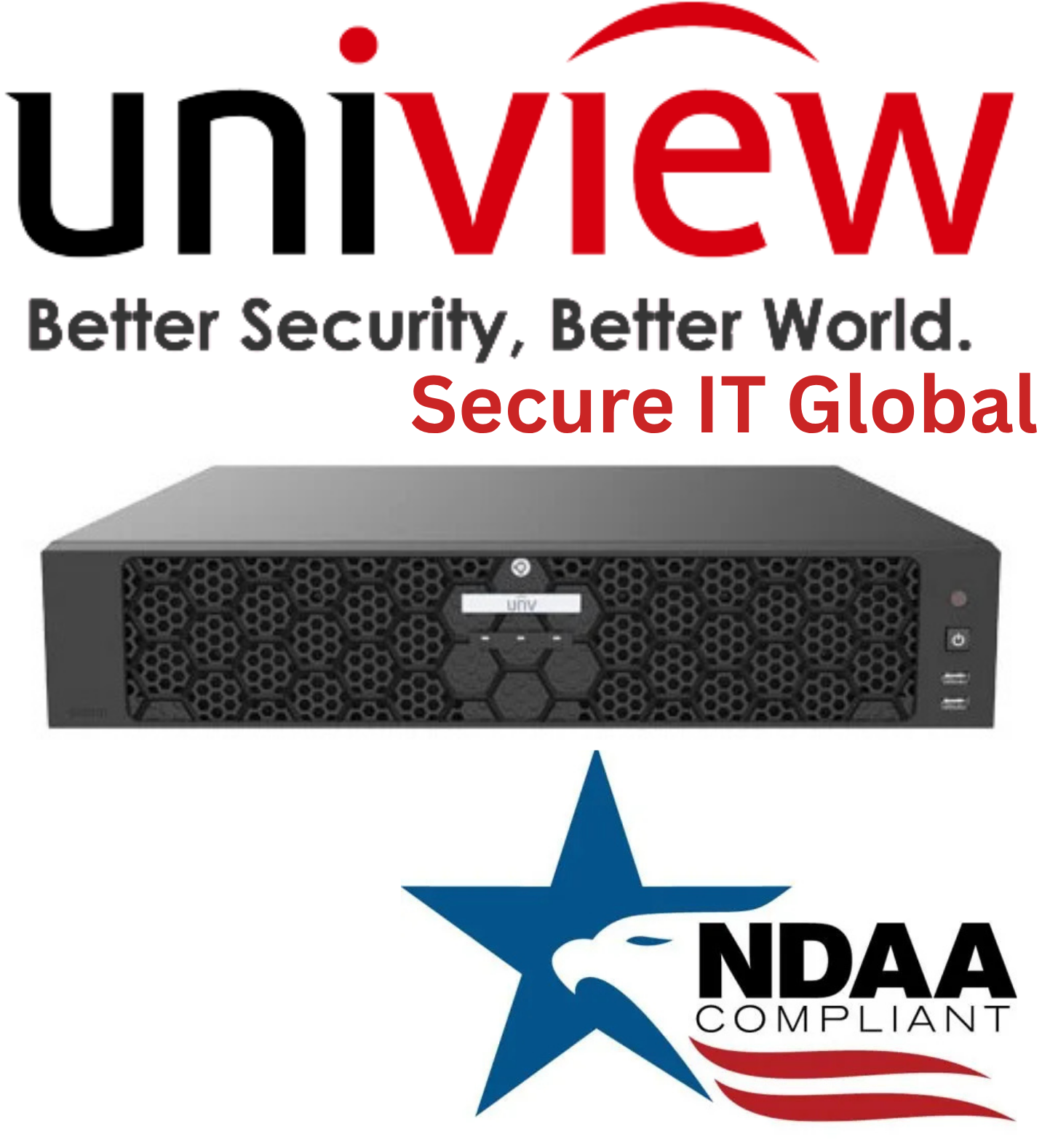

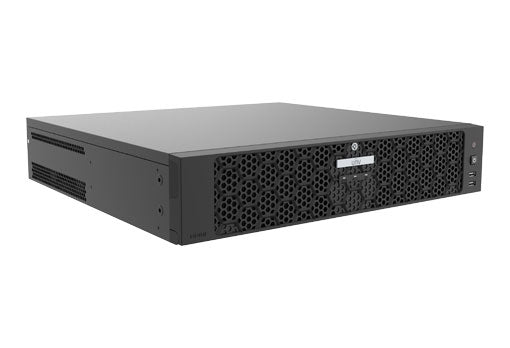

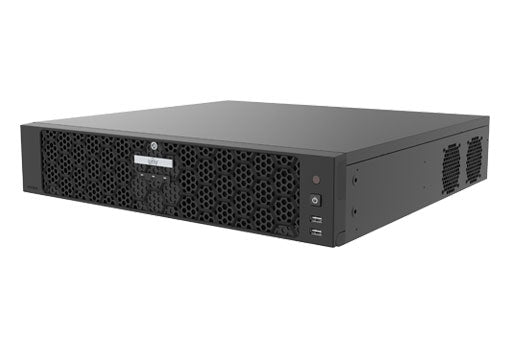

UNV 64-Ch 32MP 8 SATA HDDs Audio NDAA Uniview Security Surveillance Recorder NVR
UNV 64-Ch 32MP 8 SATA HDDs Audio NDAA Uniview Security Surveillance Recorder NVR
SKU:NVR508-64E-R
Couldn't load pickup availability
UNV 64-Ch 32MP 8 SATA HDDs Audio NDAA Uniview Network Security Surveillance Recorder NVR
Features:
Support Ultra 265/H.265/H.264 video formats
64 channel input
Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output
Up to 32 Megapixels resolution recording
8 SATA HDDs, up to 16TB for each HDD
Support N+1 Hot spare
Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
Redundant power supply optional
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Specification:
| Video/Audio Input | |
| IP Video Input | 64-ch |
| Audio Input | 1-ch, RCA |
| Network | |
| Incoming bandwidth | 384Mbps |
| Outgoing bandwidth | 384Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPV6 |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome (version 45 and above) for Windows Edge(version 79 and above) for Windows |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI1, HDMI2: 4K (3840x2160)@60, 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA1, VGA2: 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 |
| Recording Resolution | 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 2-ch, RCA |
| Two-way Audio | 1-ch, RCA(Using the audio input and output) |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 16-ch |
| Live View Display | HDMI1, VGA1: 1/4/6/8/9/16/25/36/64 HDMI2, VGA2: 1/4/6/8/9/16/25/36 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 16-ch snapshot, up to 1080P resolution |
| Decoding | |
| Decoding Format | Ultra 265/H.265/H.264 |
| Live View/Playback | 32MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30, 54 x 960P@25, 72 x 720P@30, 128 x D1 |
| Hard Disk | |
| SATA | 8 SATA interfaces |
| Capacity | Up to 16TB for each disk |
| Disk Group | Support |
| Disk Array Type | RAID 0/1/5/6/10 |
| External Interface | |
| Network Interface | 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Front: 2 x USB2.0, Rear panel: 2 x USB3.0 |
| eSATA | 1 |
| RS232 | 1 |
| RS485 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 10-ch |
| Power Output | 12V |
| General | |
| Power Supply | 100~240V AC Power Consumption: ≤ 50W (without HDD) |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 442mm × 448mm × 93mm (17.4" × 17.6" × 3.7") |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
