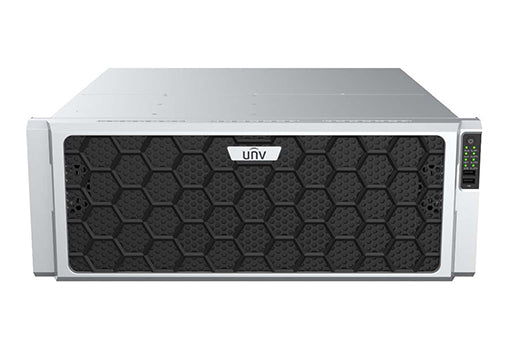

Uniview NVR824-256R 12MP 256-Ch with 24 HDDs Security Network Video Recorder
Uniview NVR824-256R 12MP 256-Ch with 24 HDDs Security Network Video Recorder
SKU:NVR824-256R
Regular price
$9,000.00 USD
Regular price
Sale price
$9,000.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Uniview NVR824-256R 12MP 256-Channel NDAA-Compliant 24 HDDs and RAID Data Protection Security Network Video Recorder
Uniview NVR824-256R-
Type: NVR
-
Channel: 256
-
Compression : Ultra 265/H.265/H.264
-
Max. Recording Resolution : 12MP
-
Max. Storage Capacity : 16 TB
-
Power Supply: 100 ~ 240V AC
-
Working Environment: -10°C ~ + 50°C (+14°F ~ +122°F)
| Model | NVR824-128R | NVR824-256R |
| Video/Audio Input | ||
| IP Video Input | 128-ch | 256-ch |
| Two-way Audio Input | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 768Mbps | |
| Outgoing Bandwidth | 768Mbps | |
| Remote Users | 128 | 256 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2: 4K | |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 16-ch | |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 | |
| Decoding | ||
| Decoding format | Ultra 265, H.265, H.264 | |
| Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Hard Disk | ||
| SATA | 24 SATA interfaces | |
| Capacity | Up to 16TB for each HDD | |
| Extension board | 4 | |
| miniSAS* | 2 miniSAS ports | |
| eSATA | 1 | |
| Smart | ||
| VCA Detection | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, | |
| VCA Search | Behavior Search, Vehicle Search | |
| People Counting | People Flow Counting, Crowd Density Monitoring | |
| General | ||
| Power Supply | 100 ~ 240V AC Power Consumption: ≤ 70 W (without HDD) | |
| Working Environment | -10°C ~ + 50°C (+14°F ~ +122°F) | |
| Dimensions | 533mm ×484.6mm × 175.5mm | |
| Weight (without HDD) | ≤ 12.5 Kg (27.56 lb) | |
