UNV 12MP IP66 IK10 PoE Uniview IP Security Camera 1.8mm Lens
UNV 12MP IP66 IK10 PoE Uniview IP Security Camera 1.8mm Lens
SKU:IPC868ER-VF18-B
Couldn't load pickup availability

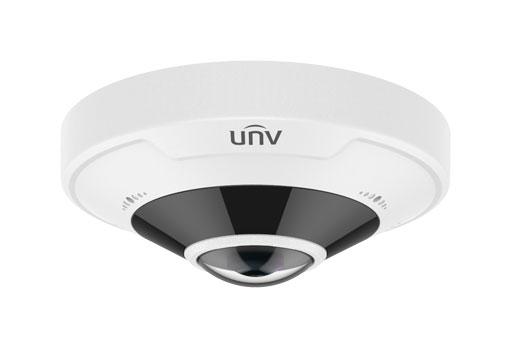

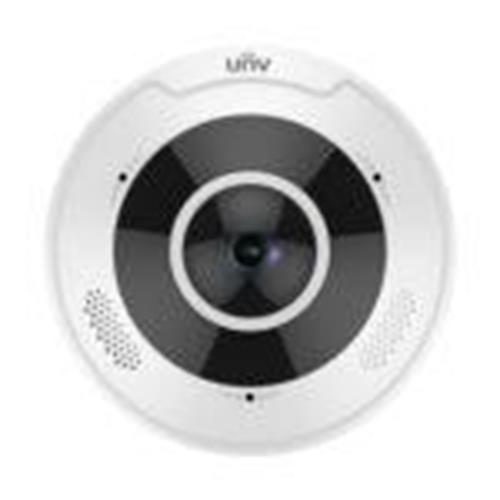

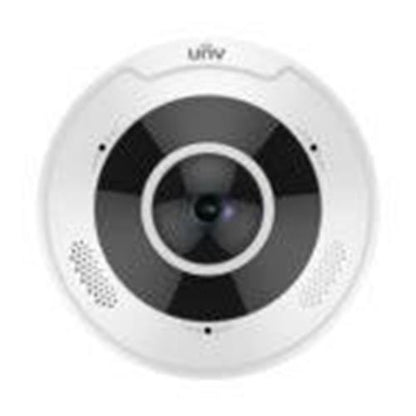

UNV 12MP Ultra HD Fisheye Uniview IP Security Dome Camera with 1.8mm Lens
Key Features:
Compression : Ultra 265, H.265, H.264, MJPEG
Megapixel: 12MP
Camera Style: Fisheye
Lens Type :Motorized Zoom lens
Lens Size : 1.8mm
Protection Code : IP66
Dimensions (Ø x H) :Φ149mm*51.5mm (Φ5.87”x 2.0”)
Weight: 0.5kg (1.1lb)
Environmental : outdoor
Audio Support : Built-in Mic
Description:
The Uniview is a high-definition fisheye IP security dome camera designed to provide comprehensive surveillance coverage. Its unique fisheye lens captures a full 360° view eliminating blind spots and offering unparalleled situational awareness. It boasts infrared night vision allowing it to capture clear footage in low-light or no-light conditions. This camera offers remote access via a mobile app ensuring you're always in control. It stands out as a formidable guardian. It's for your home, business or public space this camera offers peace of mind like never before.
Specifications
|
|
IPC868ER-VF18-B |
||||
Camera |
|||||
|
Image sensor |
1/1.7", 12.0 megapixel, progressive scan, CMOS |
||||
|
Lens |
1.8mm@F2.4 |
||||
|
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
|
1.8 |
43.8 |
17.5 |
8.8 |
4.4 |
|
|
Angle of View |
360° |
||||
|
Shutter |
Auto/Manual, shutter time: 1 ~ 1/100000s |
||||
|
Minimum Illumination |
Colour: 0.05Lux (F2.4, AGC ON) 0Lux with IR |
||||
|
Day / Night |
IR-cut filter for day & night function |
||||
|
Digital noise reduction |
2D/3D DNR |
||||
|
S/N Ratio |
>52dB |
||||
|
IR Range |
Up to 10m (33ft) |
||||
|
Defog |
Digital Defog |
||||
|
WDR |
DWDR |
||||
Video |
|||||
|
Compression |
Ultra265, H.265, H.264, MJPEG |
||||
|
H.264 code profile |
Baseline profile, Main Profile, High Profile |
||||
|
Fisheye Frame Rate |
Main Stream: 15fps (4000*3000, 3000*3000); 25fps (2560*2560); Sub Stream: 15fps (2000*1500, 2000*2000); 25fps (2000*2000); Third Stream: 15fps (720*576, 320*288) |
||||
|
Panorama |
25fps (3000*2000); 15fps (4000*3000, 3000*2000, 3000*1500) |
||||
|
Frame Rate PTZ |
15fps (1920*1080) |
||||
|
ROI |
Up to 8 areas |
||||
|
BLC |
Supported |
||||
|
OSD |
Up to 8 OSDs |
||||
|
Privacy Mask |
Up to 8 areas |
||||
|
Motion Detection |
Up to 4 areas |
||||
Audio |
|||||
|
Audio Compression |
G.711 |
||||
|
Two-way audio |
Supported |
||||
|
Suppression |
Supported |
||||
|
Sampling Rate |
8KHZ |
||||
Storage |
|||||
|
Edge Storage |
Micro SD, up to 256GB |
||||
|
Network Storage |
ANR |
||||
Network |
|||||
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
||||
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
||||
Live View Display |
|||||
|
Mount Type |
Support table, wall, and ceiling |
||||
Interface |
|||||
|
Audio I/O |
Audio interface |
||||
|
Input: impedance 35kΩ; amplitude 2V [p-p] |
|||||
|
Output: impedance 600Ω; amplitude 2V [p-p] |
|||||
|
Alarm I/O |
2/1 |
||||
|
Multiple Alarm linkage editable |
|||||
|
Built-in Mic |
Supported |
||||
|
Built-in Speaker |
Supported |
||||
|
Serial |
1 channel RS485 interface |
||||
|
Network |
1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet |
||||
|
Video Output |
1 BNC, impedance 75Ω; amplitude 1V [p-p] |
||||
General |
|||||
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
||||
|
Power consumption: Max 9.6W |
|||||
|
Dimensions (Ø x H) |
Φ149 x 51.5mm (Φ5.87” x 2.0”) |
||||
|
Weight |
0.5kg (1.1lb) |
||||
|
Working Environment |
-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH |
||||
|
Ingress Protection |
IP66 |
||||
|
Vandal Resistant |
IK10 |
||||
|
Reset Button |
Supported |
||||
