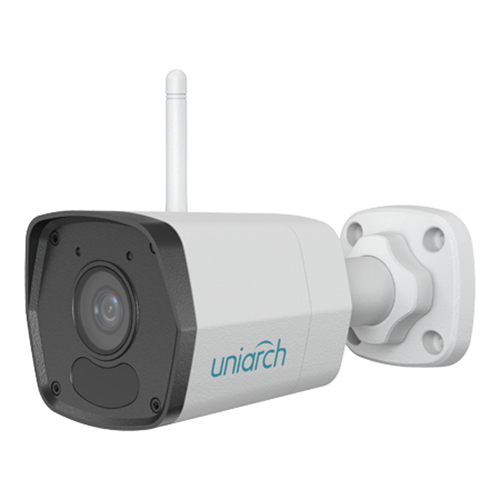

UNV 2MP Audio Uniview IP Network NDAA Bullet Security Camera Uniarch 2.8mm Lens
UNV 2MP Audio Uniview IP Network NDAA Bullet Security Camera Uniarch 2.8mm Lens
SKU:Uho-B1R-M2F3
Regular price
$53.00 USD
Regular price
Sale price
$53.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Uniview 2MP IP67 FullHD Audio IP Network NDAA Wi-Fi Bullet Security Camera Uniarch 2.8mm Lens
Features:
High quality image with 2MP, 1/2.9"CMOS sensor
2MP
Ultra 265, H.265, H.264, MJPEG
Built-in Mic
Smart IR, up to 30m (98ft) IR distance
Supports 128 G Micro SD card
IP67 protection
3-Axis
Specification:
Camera |
||||||||||
Sensor |
1/2.9", 2.0 megapixel, progressive scan, CMOS |
|||||||||
Minimum Illumination |
Colour: 0.01 lux (F2.1 AGC ON)0 lux with IR on |
|||||||||
Day/Night |
IR-cut filter with auto switch (ICR) |
|||||||||
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|||||||||
Adjustment angle |
Pan: 0°~360° |
Tilt: 0°~90° |
Rotate: 0°~360° |
|||||||
S/N |
>52dB |
|||||||||
WDR |
DWDR |
|||||||||
Lens |
||||||||||
Lens Type |
2.8mm@F2.1 |
4.0mm@F2.1 |
||||||||
Iris |
Fixed |
|||||||||
Field of View (H) |
101.1° |
83.7° |
||||||||
Field of View (V) |
55.0° |
44.6° |
||||||||
Field of View (D) |
111.0° |
89.1° |
||||||||
DORI |
||||||||||
DORI Distance |
Lens |
Detect(m) |
Observe(m) |
Recognize(m) |
Identify(m) |
|||||
2.8mm |
45.0 |
18.0 |
9.0 |
4.5 |
||||||
4.0mm |
64.3 |
25.7 |
12.9 |
6.4 |
||||||
Illuminator |
||||||||||
IR Range |
Up to 30m (98 ft) IR range |
|||||||||
Wavelength |
850nm |
|||||||||
IR On/Off Control |
Auto/Manual |
|||||||||
Video |
||||||||||
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|||||||||
H.264 code profile |
Baseline profile, Main profile, High profile |
|||||||||
Frame Rate |
Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||||||||
Video Bit Rate |
128 Kbps~6 Mbps |
|||||||||
U-code |
Support |
|||||||||
OSD |
Up to 4 OSDs |
|||||||||
Privacy Mask |
Up to 4 areas |
|||||||||
ROI |
Up to 8 areas |
|||||||||
Video stream |
Dual streams |
|||||||||
Image |
||||||||||
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|||||||||
Digital Noise Reduction |
2D/3D DNR |
|||||||||
Smart IR |
Support |
|||||||||
Flip |
Normal/Vertical/Horizontal/180° |
|||||||||
Dewarping |
N/A |
|||||||||
HLC |
Support |
|||||||||
BLC |
Support |
|||||||||
Defog |
Digital Defog |
|||||||||
Audio |
||||||||||
Audio Compression |
G.711U, G.711A |
|||||||||
Audio Bitrate |
64 Kbps |
|||||||||
Two-way Audio |
N/A |
|||||||||
Suppression |
Support |
|||||||||
Sampling Rate |
8KHZ |
|||||||||
Storage |
||||||||||
Edge Storage |
Micro SD, up to 128GB |
|||||||||
Network Storage |
ANR,NAS(NFS) |
|||||||||
Network |
||||||||||
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP |
|||||||||
Compatible Integration |
API , SDK |
|||||||||
User/Host |
Up to 6 users. 2 user levels: administrator and common user |
|||||||||
Client |
Uniarch ClientUniarch APP |
|||||||||
Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
|||||||||
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
||||||||||
Interface |
||||||||||
Audio I/O |
N/A |
|||||||||
Alarm I/O |
N/A |
|||||||||
Built-in Mic |
Support |
|||||||||
Built-in Speaker |
N/A |
|||||||||
WIFI |
Support |
|||||||||
Network |
1 * RJ45 10M/100M Base-TX Ethernet |
|||||||||
General |
||||||||||
Power |
DC 12V±25% |
|||||||||
Power consumption: Max 3.6W |
||||||||||
Power Interface |
Ø 5.5mm coaxial power plug |
|||||||||
Dimensions (L x W x H) |
168 × 88 ×72 mm (6.6” × 3.5” × 2.8”) |
|||||||||
Weight |
0.28 kg (0.62 lb) |
|||||||||
Material |
Metal + Plastic |
|||||||||
Working Environment |
-30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) |
|||||||||
Storage Environment |
-30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) |
|||||||||
Surge Protection |
4KV |
|||||||||
Reset Button |
Support |
|||||||||
LED indicator |
1, red/green |
|||||||||
