UNV IP67 6x4MP NDAA Audio IP Camera+8-Ch+4K NVR Network Uniview Security Kit
UNV IP67 6x4MP NDAA Audio IP Camera+8-Ch+4K NVR Network Uniview Security Kit
SKU:EK-S31P8T46T2
Couldn't load pickup availability

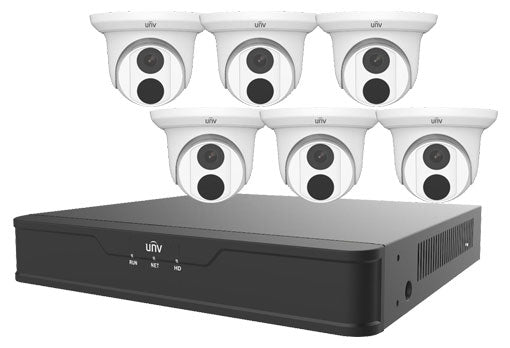

UNV IP67 IR 6 x 4MP Turret IP Camera + 8-Ch 4K NVR + 2TB HDD Video Uniview Security Surveillance Kit 2.8mm fixed lens Night Vision
The Uniview Surveillance Kit is a total security system you need.
Upgrade your home or business security with the Uniview 4MP IP67 Turret Camera Kit, a complete NDAA-compliant surveillance system by Secure IT Global. Designed for high performance and reliability, this 6-camera IP kit comes with an 8-channel NVR, ONVIF PoE support, night vision, and a pre-installed 2TB HDD for 24/7 video recording.
Included in the kit:
- (1) 6 x 4MP turret with a 2.8mm fixed lens (EC-T4F28M)
- (2) 1 x 8-Channel 4K NVR (NVR301-08S3-P8)
- (3) 1 x pre-installed 2TB hard drive
- (4) 6 x 60' pre-made Ethernet cables
- (5) 1 x 6' pre-made Ethernet cable
- (6) 1 x 6' HDMI cable
Complete Uniview 4MP IP Surveillance Kit – NDAA Compliant, PoE, 8CH NVR
The Uniview Video Security Surveillance Kit offers a comprehensive solution that merges cutting-edge technology with ease of use. This Complete Video Security Surveillance Kit comes with everything you need . With 6 Turret IP cameras and 8-channel NVR, you have room for 2 additional cameras to add to your system over time. It also Support Ultra 265/H.265/H.264 Video formats And Camera Protection Code is IP67 with M12 Lens Mount. Whether you want to deter potential intruders, monitor your property remotely or simply have peace of mind, a surveillance system is your best ally. The Uniview kit boasts 6 x 4MP Turret IP Cameras promising crystal-clear images and videos. Whether you're at work or on vacation you can keep an eye on your property with just a few taps on your smartphone.
Secure IT Global brings you the UNV IP67 IR 6 x 4MP Turret IP Camera Kit bundled with an 8-Channel Uniview NVR and 2TB storage—an all-in-one Uniview surveillance solution perfect for small businesses, homes, and retail locations. These Uniview security cameras are NDAA compliant and feature ONVIF PoE connectivity for easy installation and seamless integration with existing systems.
Each Uniview 4MP IP camera comes with a 2.8mm fixed lens, offering crystal-clear image quality and wide-angle monitoring. With night vision capabilities and IP67 weatherproof protection, these turret cameras are built to perform under any condition. The included 8 channel NVR supports up to 8 Uniview cameras, allowing you to scale your security system as needed.
Specification Of Uniview 6 x 4MP IP Turret Cameras:
| Video/Audio Input | |||||
| IP Video Input | 8-ch | ||||
| Network | |||||
| Incoming Bandwidth | 64Mbps | ||||
| Outgoing Bandwidth | 48Mbps | ||||
| Remote Users | 128 | ||||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP | ||||
| Video/Audio Output | |||||
| HDMI/VGA Output | HDMI: 4K(3840x2160)/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
||||
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||
| Audio Output | 1-ch, RCA | ||||
| Audio Compression | G.711A, G.711U | ||||
| Synchronous Playback | 8-ch | ||||
| Liveview display | 1/4/6/8/9 | ||||
| Corridor Mode Screen | 3/4/5/7/9 | ||||
| Snapshot | |||||
| FTP/Schedule/Event Snapshot | 1-ch snapshot, up to D1 resolution | ||||
| Decoding | |||||
| Decoding format | Ultra 265/H.265/H.264 | ||||
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||
| Capability | 1 x 4k@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30 | ||||
| Hard Disk | |||||
| SATA | 1 SATA interface | ||||
| Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) |
||||
| Smart | |||||
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD) | ||||
| VCA Search | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Ultra Motion Detection(UMD) | ||||
| Smart Intrusion Prevention (SIP), UMD by Camera | Total 4-ch | ||||
| General Alarm | |||||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input | ||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||||
| External Interface | |||||
| Network Interface | 1 RJ-45 10M/100Mself-adaptive Ethernet Interface | ||||
| USB Interface | Rear panel: 2 x USB2.0 | ||||
| RS232 | NA | ||||
| RS485 | NA | ||||
| Alarm In | NA | ||||
| Alarm Out | NA | ||||
| PoE | |||||
| Interface | 8 RJ-45 10M/100Mself-adaptive Ethernet Interface | ||||
| Max Power | Max 30W for single port Max 75W in total |
||||
| Supported Standard | IEEE 802.3at, IEEE 802.3af | ||||
| General | |||||
| Power Supply | 52V DC Power Consumption: ≤9 W (without HDD) |
||||
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | ||||
| Dimensions (W×D×H) | 260mm ×240mm × 46 mm (10.2" × 9.4" ×1.8") | ||||
| Weight (without HDD) | ≤1.1kg (2.43lb) | ||||
| Certification | |||||
| Certification | CE, FCC, UL, RoHS, WEEE | ||||
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | ||||
| FCC | Part15 Subpart B, ANSI C63.4 | ||||
| Camera | |||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | ||||
| Min. Illumination | Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Adjustment angle | Pan: 0° ~ 360° , Tilt: 0° ~ 75°, Rotate: 0° ~ 360° | ||||
| S/N | >56dB | ||||
| WDR | DWDR | ||||
| Lens | |||||
| Lens Type | 2.8mm @2.0, Fixed-focal | ||||
| Lens Mount | M12 | ||||
| Angle of View (H) | 97.0° | ||||
| Angle of View (V) | 52.2° | ||||
| Angle of View (O) | 107.5° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |
| Illuminator | |||||
| IR Range | Up to 30m (98ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||
| Frame Rate | Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream:D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||
| Video Bit Rate | 128 Kbps~6144 kbps | ||||
| U-code | Supported | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Vertical/Horizontal/180° | ||||
| Dewarping | N/A | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Behavior Detection | Cross line, intrusion(based on human body detection) | ||||
| Motion detection, tampering alarm | |||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 128GB | ||||
| Network Storage | ANR, NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation EZView EZLive |
||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | |||||
| Interface | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Certification | |||||
| EMC | FCC: FCC Part 15 | ||||
| Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 |
||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 4.0W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Material | Metal | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Reset Button | N/A | ||||
| Ingress Protection | Ingression protection: IP67 | ||||
