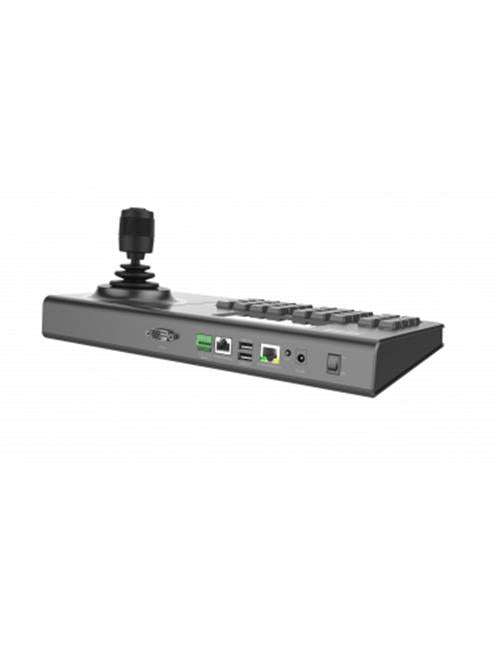

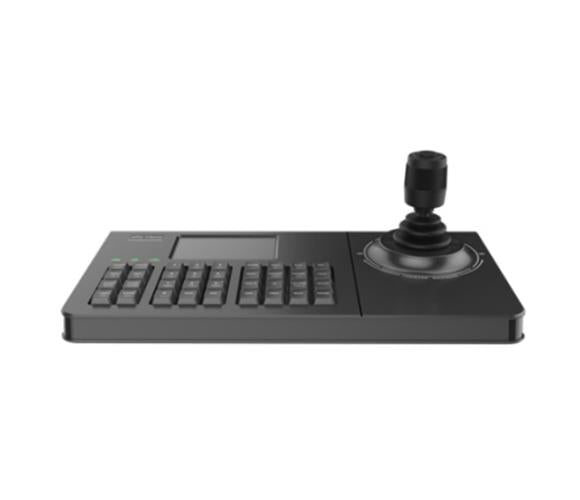

UNV Network Keyboard 4D Joystick for PTZ Control Uniview Surveillance Security Accessory
Features:
Simple appearance and button layout, aesthetic and user-friendly.
4-inch display screen provides clear image with more details.
4D joystick for PTZ control (move up/down//left/right, focus, zoom).
Uses Hoare joystick with high control precision and stability, effectively extending the lifetime.
Power on/off button on the keyboard, convenient and energy-saving.
Simple and clear keyboard configuration, easy for use and maintenance.
Supports playing video on video wall and control video.
Supports keyboard lock.
Allows to set multiple-level user permissions
Specification:
| General |
Description |
| Screen Size |
4 inches |
| Joystick |
Four-dimensional joystick |
| Max Power Consumption (W) |
＜5 |
| Product Dimensions （W*H*D）（mm） |
345.00*189.82*128.16 |
| Weight (kg) |
1.2 |
| Operating Temperature |
-10°C to 55°C |
| Operating Humidity |
10% to 90% RH, noncondensing |
| Other Interfaces |
Description |
| Serial Port |
1*RS232 (DB9, reserved)
2*RS485 (half-duplex, reserved) |
| Console |
1*Console/RS485 shared interface (RJ45) |
| USB |
2*USB (reserved) |
| Network Interface |
1*RJ45, 10M/100M/1000M Based-T adaptive interface |
| Power |
DC 12V |
| RST |
1*Reset button |
