UNV 5MP HD IP67 Audio Uniview Analog Turret Surveillance Security Camera 2.8mm Lens
UNV 5MP HD IP67 Audio Uniview Analog Turret Surveillance Security Camera 2.8mm Lens
SKU:UAC-T125-AF28M-W
Couldn't load pickup availability

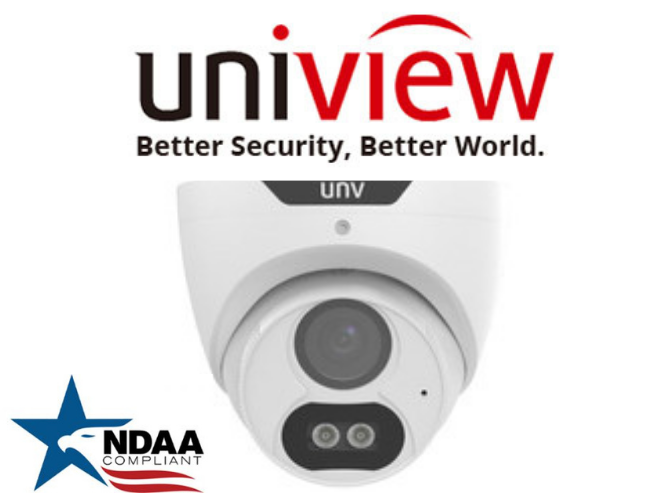

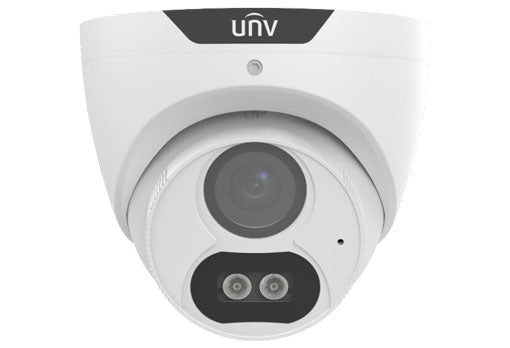

UNV 5MP ColorHunter HD-TVI Uniview Turret Analog Security Camera with a 2.8mm Fixed Lens
UNV 5MP ColorHunter analog Camera a new level of detail with our high-quality image.
Features of Uniview 5MP ColorHunter Camera:
- 5MP high quality imaging
- TVI/AHD/CVI/CVBS
- Supports white light illumination, 24/7 color images
- Supports 180° horizontal flip, 180° vertical flip
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu, easy to operate
- Built-in microphone for high quality audio transmission via coaxial cables
- Metal front face and housing
- 3-Axis
Uniview 5MP Camera: High-Quality Surveillance Solutions :
The Uniview 5MP ColorHunter HD-TVI Camera offers exceptional video quality and is perfect for any video surveillance system. Featuring 5MP high-quality imaging, this camera delivers crystal-clear video, even in low light conditions, thanks to its advanced white light illumination technology. As an NDAA compliant camera, the Uniview 5MP camera ensures you’re getting a secure and reliable surveillance solution, meeting all regulatory standards.
This Uniview IP camera is designed for easy installation and integration into your existing security system. The POE camera functionality makes it incredibly simple to set up with just one cable for both power and data transmission. Whether you’re looking for a Uniview dome camera, Uniview PTZ camera, or a versatile Uniview security camera, this Unv IP camera is a top choice for homeowners and businesses alike.
The Uniview security cameras are known for their durability, with an IP67 waterproof and dustproof design. Offering reliable performance in various weather conditions, these cameras are built to withstand the elements. The Uniview surveillance system provides 24/7 monitoring, ensuring your property is always protected. If you're seeking an advanced Unv security camera, the Uniview ColorHunter camera is the ideal solution for your security needs.
Specification of Uniview 5MP ColorHunter Camera:
| Sensor | ||
| Pixel | 5MP | |
| Size | 1/2.7" | |
| Minimum illumination | 0.005lux (F1.4, AGC ON) 0 lux (white light on) |
|
| Lens | ||
| Lens | 2.8mm | |
| Lens mount | M12 | |
| Angle of view | H: 111.5° V: 58.9° D: 134.8° |
|
| Illuminator | ||
| Illuminator | Two white-light illuminators | |
| Illumination distance | 40m | |
| Lifetime | ≥60,000 hours | |
| Video | ||
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) |
|
| Frame rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC |
|
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
|
| Image | ||
| Exposure mode | Four modes: Global (default), BLC, HLC, DWDR | |
| Day/Night | 24/7 color images | |
| Digital noise reduction | 2D | |
| White balance | Two modes: Auto (default), Manual | |
| WDR | DWDR | |
| Flip | Supports 180° horizontal flip, 180° vertical flip | |
| Audio | ||
| Microphone | Built-in Mic | |
| Camera audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps |
|
Interface
| Interface | ||
| Power | 5.5mm power interface | |
| Video output | BNC, supports TVI/AHD/CVI/CVBS | |
| Operating environment | ||
| Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Humidity | ≤95% (RH, non-condensing) | |
| Surge protection | 4kV | |
| Ingress protection | IP67 | |
| General | ||
| Power | DC12V (±25%), with reverse polarity protection. Max 3.28W | |
| Mount | Surface mount (default), optional junction box and wall mount bracket | |
| Dimensions | Φ111mm*96mm (diameter*height) | |
| Material | Metal and plastic | |
| Weight | 356g (0.79lb) | |
| Certification | CB, CE, FCC, UL | |
